Application

Where can we use it?

Herschel Recommends

Herschel iQ Hub
Herschel iQ Hub
The Herschel iQ Hub enables remote App control of your Herschel iQ and heater system. The Hub connects via an ethernet connection to your router and once paired with a mobile device such as a tablet of smartphone, will communicate wirelessly with your Herschel iQ controllers (up to 8 separate Herschel iQ controllers) in your home. (Adding another hub allows you to extend the range and scale of your system).

Using the Hub and the App, you will be able to remotely:

Check at a glance the temperature in each of your rooms;

Set Program, Comfort or Economy Modes on each of your controllers;

Set Away Mode (T1 and R1 only);

Make program changes easily and conveniently from your mobile device;

Override temperature settings or even switch off a controller entirely;

Restart a control that is in “Open Window” mode.

More features

The power of the iQ Hub and app becomes really apparent when you want to extend your system.

You can add another hub on a separate network and manage the iQ devices on it. This means (for example) you could manage your home and office heating on the same app.

You can share management of one or more hubs with another mobile phone (e.g. spouse or colleague).

Because device and control data is held on the hubs and iQ devices, it doesn’t matter if you lose your phone or want to upgrade it. Just download the app to the new device and re-pair.

12 month warranty*.

Click here to download the iQ Hub and App Installation and Usage Instructions.

Download the Herschel iQ app:

Note: Herschel iQ controls will only work with Herschel heaters.

*Attempted use with any other heater brand will invalidate the warranty.

$229.95Add to cart
Herschel iQ WH1 Central Control Unit
Herschel iQ WH1 Central Control Unit
Herschel’s advanced building heater control system.

Works on 120v and 230v.

The Herschel iQ WH1 Central Control Unit provides centralised control of up to 36 R1 receivers (running up to 2.3kW each of Infrared heaters on 230 volts and 1.2kW on 120 volts) and manages them either:

As a whole group using single-touch commands;

In up to 6 different zones comprising up to 6 R1 receivers each;

Individually.

This provides the ultimate flexibility for home and commercial heating control.

The iQ WH1 Central Control Unit has a LCD touch screen for ease of use. Functions include:

Group “Quick Actions” including single touch control of all R1 temperature settings and enabling of different modes (Comfort; Away and Week schedule) and global time-of-day setting;

Configuration of up to 6 Zones

Configuration of up to 6 R1’s per zone.

Individual R1 Receiver includes:

Target Temperature control;

5+1+1 Week schedule with 4 times of day;

Setting of individual “Comfort” & Away modes;

Window Open Function (shutting off the heating if a rapid drop in temperature is detected until you override this or wait 1 hour);

Other Features:

Radio Frequency 433Mhz;

200m wireless range (if unobstructed);

12 month warranty*;

Herschel Infrared heaters together with the iQ WH1 Central Control Unit are fully compliant with EC Directive 2009/125/EC for Ecodesign of local space heaters.

Documentation:

Herschel iQ Configuration guide. (Describes control options available from single rooms through to whole building control.)

WH1 User Guide.

R1 Instructions.

*Must be used with Herschel Heaters to qualify.

$349.95Add to cart

Herschel iQ R1 Wireless Receiver

Name: Herschel iQ R1 Wireless Receiver
Brand: Herschel iQ Controls
SKU: T-R1
Price: 99.95 AUD
Availability: InStock

$99.95

Rapid Dispatch

DIY Friendly

Reduce heating Cost

Highly energy efficient

1 Yr Warranty

Zero maintenance

Description

The new Herschel iQ R1 Receiver (Gen 3 model) is specifically designed to control Herschel Infrared heaters. The R1 will operate with the T1 Thermostat or directly with the iQ Hub. The R1 Receiver must be wired to the mains electricity supply and also to the Herschel heater(s).

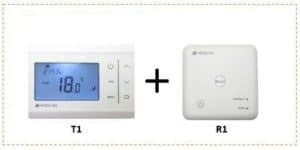

Option 1 – with the T1 Thermostat

When using with the T1 Thermostat, the R1 pairs wirelessly to the thermostat which then sends commands to the R1 to either turn the heater(s) on or off. Additional R1s can be added to the same T1 Thermostat. Optional remote control of the T1 Thermostat, over the internet, is available (just add the iQ Hub and download the Herschel iQ App)*

Option 2 – with the iQ Hub

The R1 has an in-built internal temperature sensor and is capable of being controlled directly from the Herschel iQ App. The R1 will sense the room temperature which will be displayed on the App. Must be used in conjunction with the Hub.

The R1 Receiver features a 1 hour Boost function and Herschel’s latest open-window detection technology.

Choose this option if you prefer to control by an App without any local devices.

Documentation:

R1 Instructions.

Note: Herschel iQ controls will only work with Herschel heaters. Attempted use with any other heater brand will invalidate the warranty.

*Note: internet-enabling with the iQ Hub is only available on T1 (Gen 3) and R1 (Gen 3) models, launched November 2018).

Other Features:

10 Amp peak load at 230 volts;
Radio Frequency 433Mhz;
200m wireless range (if unobstructed);
12 month warranty*;
Herschel Infrared heaters together with the iQ T1 Thermostat or R1 Receiver are fully compliant with EC Directive 2009/125/EC for Ecodesign of local space heaters.

*Attempted use with any other heater brand will invalidate the warranty.

Herschel Heaters and iQ Controls comply with ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20).
