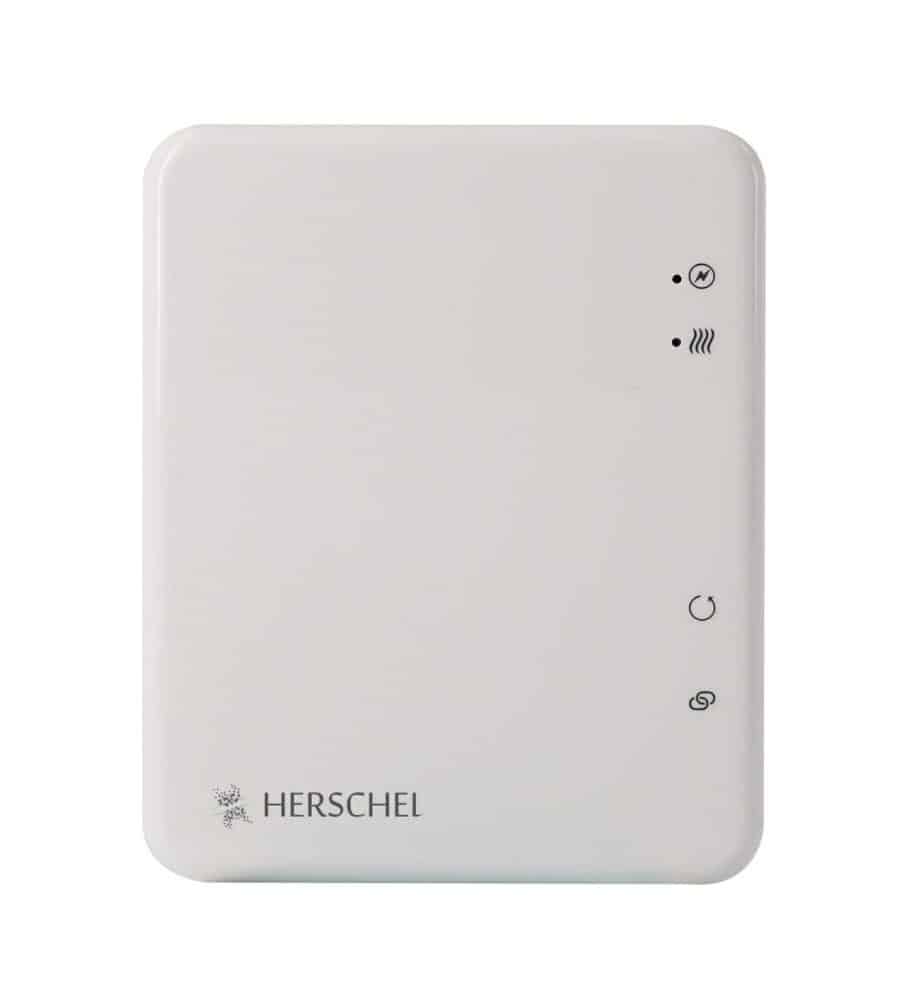

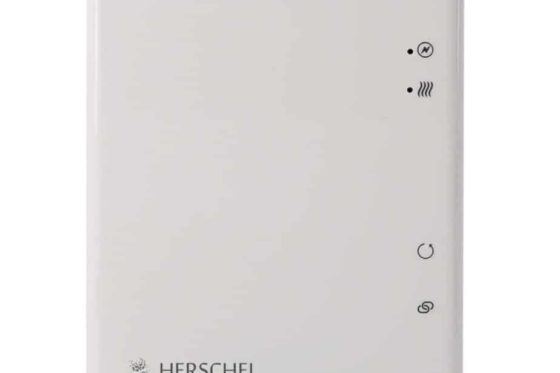

Herschel iQ Hub

The Herschel iQ T2 Thermostat pack (including one T2 thermostat plus R2 Receiver) incorporates the very latest energy-saving technology and is specifically designed to regulate Herschel Infrared heaters. When used with wifi you can also regulate your heating remotely using the SmartLife App.

Easy to install it is perfect for installations where hard wiring to the MD2 Thermostat would be impractical (for example, if you wish to minimise chasing out walls/cable trunking).

The T2 pack comprises a battery operated, wireless T2 Thermostat which can be wall mounted or free standing (and also includes one R2 Receiver).

The R2 Receiver must be wired to the mains electricity supply and also to the Herschel heater(s). The T2 and R2 are paired wirelessly to each other and the R2 can also be paired to your wifi for SmartLife app control (if required).

The T2 will then control all R2s which are paired to it.  The T2 pack will control up to 2kW (at 230V supply) of Herschel Infrared heaters on one electrical circuit. To control more heaters in the same zone, or if you wish to use one R2 Receiver per heater, simply purchase additional R2 receivers and pair them to the T2.

The T2 features 2 manual modes and 7 x 1 day programming and is an easy to operate thermostat. The T2 incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use.

Note:

Herschel controls will only work with Herschel heaters.  Attempted use with any other heater brand will invalidate the warranty.

A T2 must be used even if SmartLife app control is to be the primary means of controlling your heating (i.e. you cannot use just the App and R2).

The T-T2 pack incorporates one T2 thermostat and one R2 Receiver.

The Herschel iQ R2 Receiver is specifically designed to control Herschel Infrared heaters. The R2 operates with the T2 Thermostat.

The R2 is the switch that turns your heaters on and off and must be wired to the heaters and mains power. It also acts as the internet gateway for the T2 enabling you to control the system with the SmartLife App.

The R2 pairs wirelessly with the T2 thermostat and receives control commands from the T2 to either turn the heater(s) on or off. Additional R2s can be added to the same T2 Thermostat to allow you to add several heaters in a room to the same T2 control.

The R2 Receiver features a 1 hour Boost function and all other control functions are provided from the T2 or SmartLife app.

Please note: Herschel controls will only work with Herschel heaters.  Attempted use with any other heater brand will invalidate the warranty.

The R2 must be used with a T2 to control your heating.

The Herschel iQ MD1 Wired Thermostat is ideal for new builds / renovations where cabling can be neatly hidden whether it be for domestic or commercial applications. When used in conjunction with the iQ HUB, MD1 can also be controlled via the internet using the Herschel iQ App enabling you to control the heaters when you are away from the building.

MD1 is wired directly to the mains circuit and to the heaters and requires recessing into the wall. If this is not practical consider the Herschel iQ T1 Wireless Thermostat.

The MD1 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MD1 is easy to operate, featuring a large digital touchscreen display and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

MD1 has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.  The MD1 is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.

Functions include:

• 7 x 1 day programmable, 6 periods per day;
• “Comfort” and Economy modes;
• Window Open Function (shutting off the heating if a rapid drop in temperature is detected until you override this or wait 1 hour);
• Time of Day;
• Target Temperature control (up to 45°C, making it suitable for specialist high temperature applications such as hot yoga studios);
• Keypad lock.

Other Features:

• 16 Amp peak load at 230 volts;
• Radio Frequency 433Mhz;
• 200m wireless range (if unobstructed);
• 24 month warranty*;
• Herschel Infrared heaters together with the iQ MD1 are fully compliant with EC Directive 2009/125/EC for Ecodesign of local space heaters.

Note: Herschel iQ controls will only work with Herschel heaters.   *Attempted use with any other heater brand will invalidate the warranty.

Click here to download the Installation and setup instructions.
