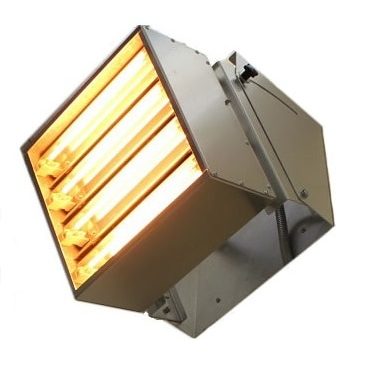

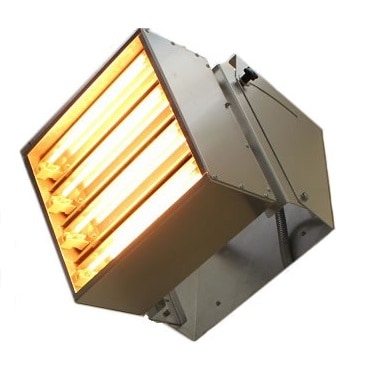

Vulcan 5 kW Workshop Heater
FROM $2,499.00
Vulcan 4kW Industrial Heater

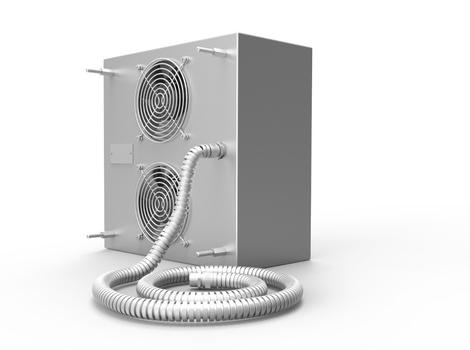

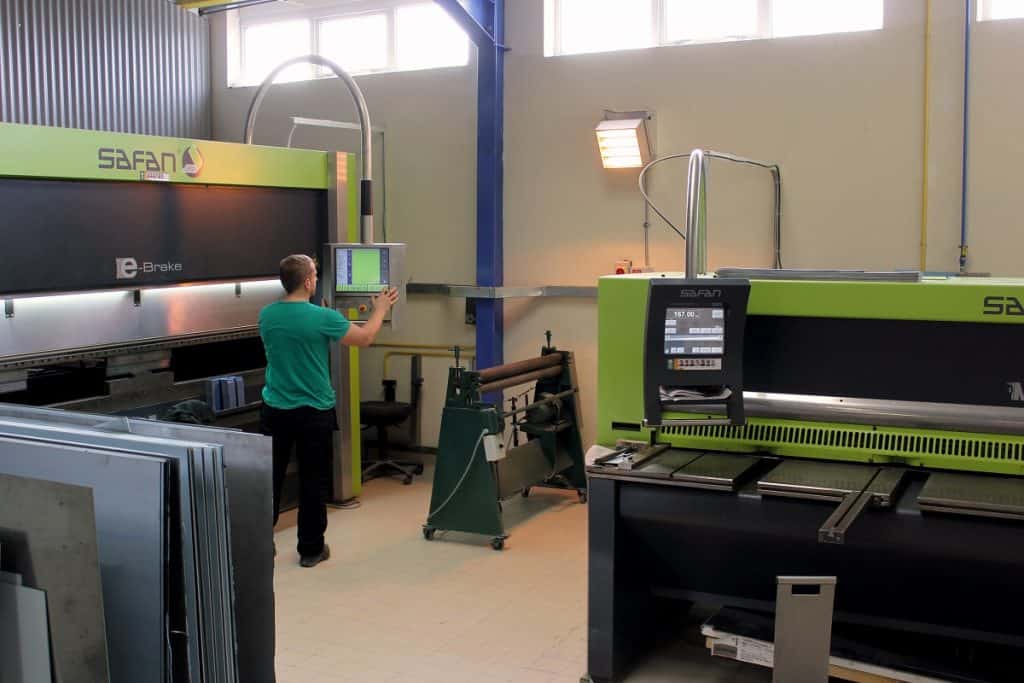

Vulcan 4kW Industrial Heater Herschel Vulcan 4kW Heater heating a workshop Herschel Vulcan 4kW Heater heating a metal pressing workarea Herschel Vulcan 4kW Heater in an industrial unit Herschel Vulcan 4-5kW rear view Herschel Vulcan 5kW workshop heater dimensions Vulcan 5kW Workshop heater wiring schematic

Vulcan 5 kW Workshop Heater

FROM $2,499.00

Key Features:

  • Wall or ceiling mount
  • High power Quartz Tungsten lamps
  • Heats large areas
  • Quality European construction
  • Long life components
  • Professional installation required
  • Heating Industrial Units
MODEL / WATTAGE DIMENSIONS HEATS M² PRICE

M-Vulcan-5

5000W

30.5 x 30.5cm

Contact Herschel

$2,499.00

Out Of Stock

Special Order Item

2 year warranty

Reduce heating Cost

Energy efficient

Professional Install

Low Maintenance

Find Out More

  • Description

    Description

    Herschel’s Vulcan 5kW Infrared workshop heaters are designed to heat large spaces like workshops and warehouses. They offer considerable advantages to operators seeking alternatives to gas or convection-based heating systems:

    • Vulcan provides heat exactly where and when you want it. Used to heat specific zones within a large space;
    • Pollution free – Vulcan does not emit any fumes and does not require additional ventilation;
    • Powerful – designed for industrial use;
    • Covers large areas from high installation heights

    Effective, transmissive Radiant heat is produced by 5 x 1kW Quartz – Tungsten (Short/Medium IR: 1.6-1.9µm) lamps. The Vulcan is also unique in being equipped with fans which serve two purposes of:

    1. Significantly enhancing heat distribution (in the direction the heating is pointing)
    2. Considerably extending the life of the lamps by keeping them cool, without affecting their radiance.

    The Vulcan 5kW infrared workshop heater is ideal for industrial units wishing to avoid using fully convection-based or gas-based blower systems.

    Always refer to Herschel for an accurate assessment of your heating requirements.

    Installation

    The Vulcan can be installed pointing vertically downwards from heights of 3.5 – 6m above the ground.

    The Vulcan can also be wall-mounted angled downwards and an optional bracket can be purchased for this purpose.

    Single phase (220 – 240V 50Hz) power can be used to power the Vulcan 5kW workshop heater and installation must be performed by a commercial electrician. Do not exceed 245 Volts input supply as this will shorten the operating life of the lamps.

    The Vulcan 5kW Infrared Workshop Heater has no built-in controls. Please discuss control options with Herschel during the estimating phase of your heating project.

    The inbuilt fans have their own circuit and must be operational at all times that the lamps are operational and must continue to operate for at least a minute after the lamps are switched off. Failure to observe this requirement will invalidate the warranty.

    Vulcan 5kW Infrared Workshop Heaters are special order items. Purchase price includes the first set of 5 lamps.

  • Technical

    Technical Specifications

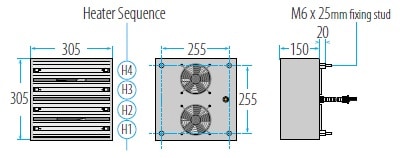

    Dimensions: 305 x 305 x 150mm

    Element: 5 x 1kW Quartz-Tungsten Lamps producing 5kW or approximately 17,000 BTU/hr

    Cooling Fans: 2

    Useful Wavelength Range: 1.6-1.9µm

    Body: Aluminium body

    Cable length: 5m

    Voltage: 220-240 50 Hz

    Guarantee: 2 years, excluding Quartz lamps.

    Operating conditions within workshops units vary considerably. Contact Herschel for heated area estimate.

    Quality & Safety

    Guarantee: 24 months. Excludes Quartz Lamps.

    This unit is not suitable for household or similar use.
