Vulcan 6 -12 kW Warehouse Heater
FROM $2,499.00

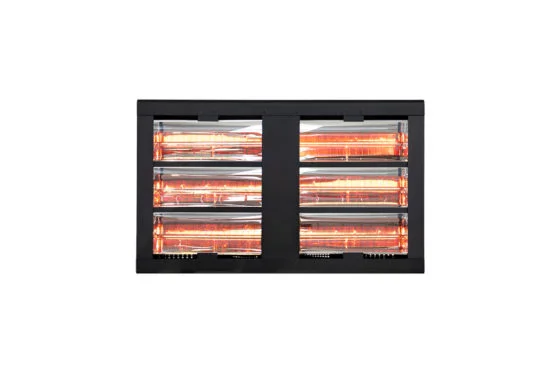

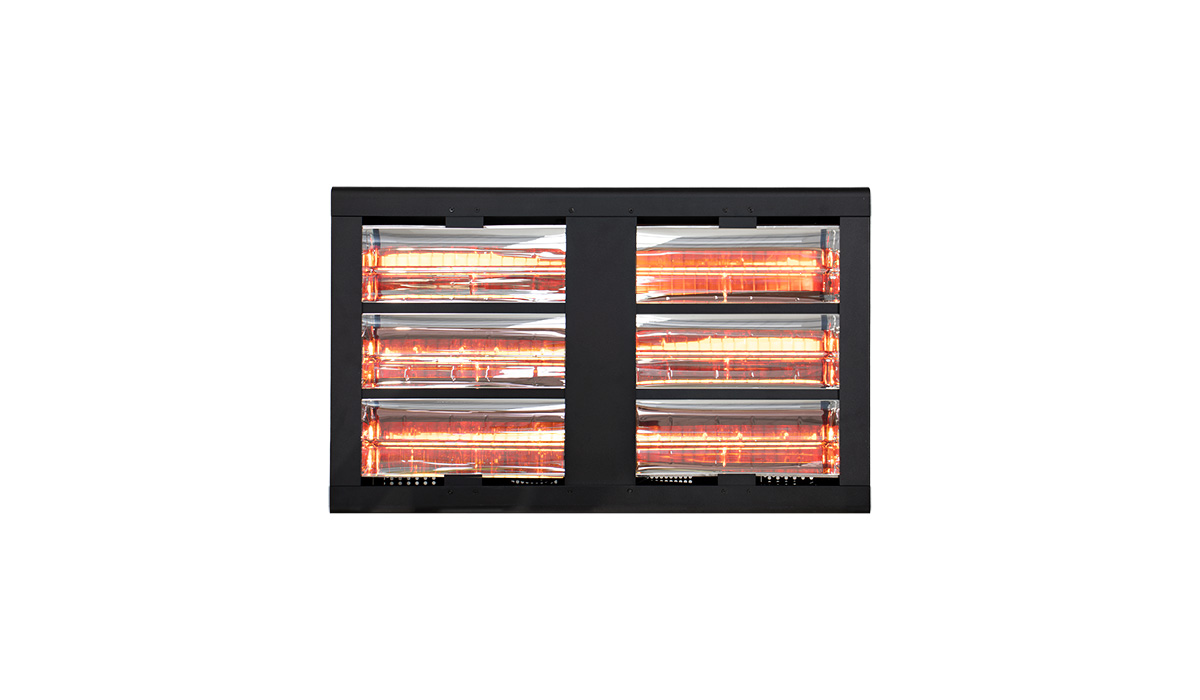

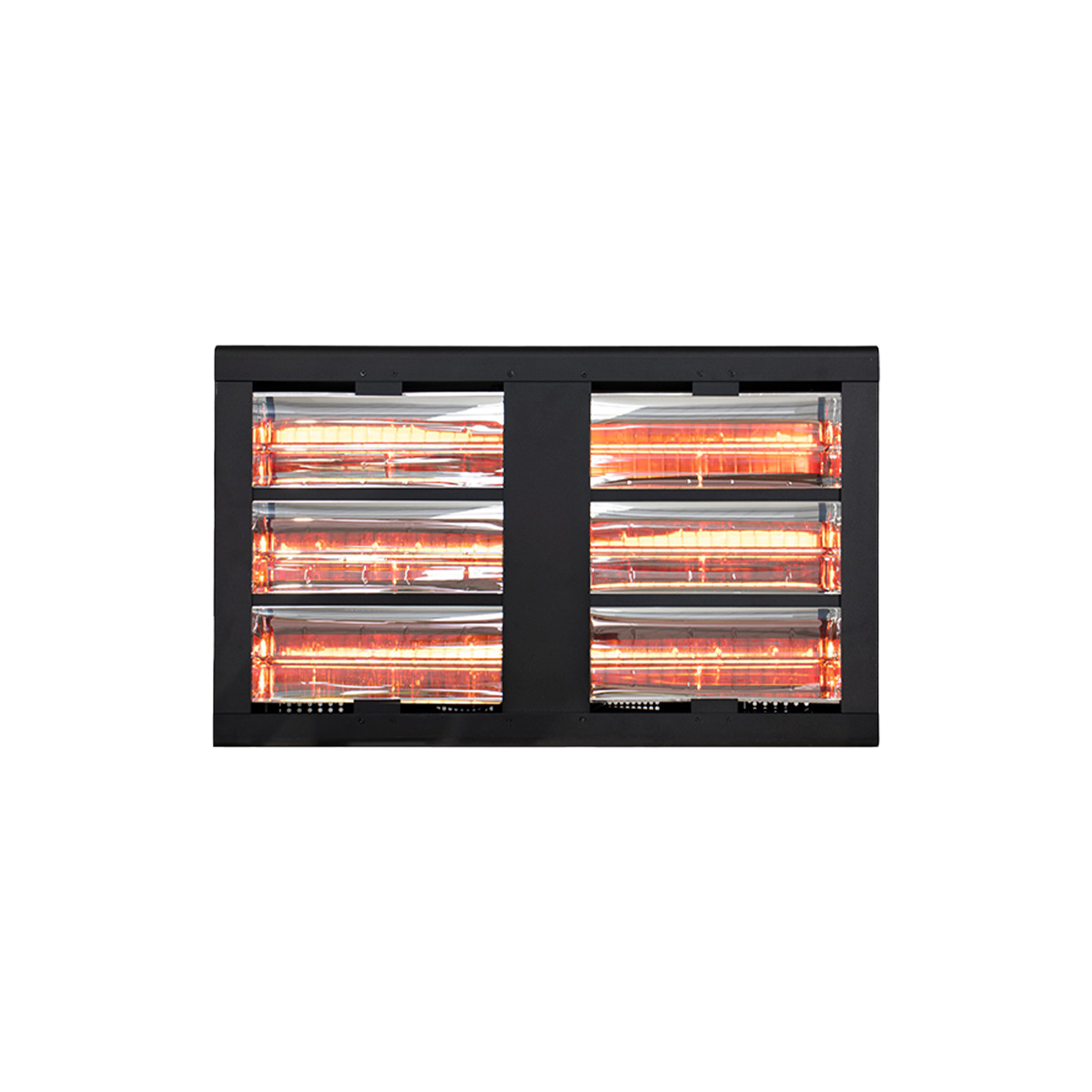

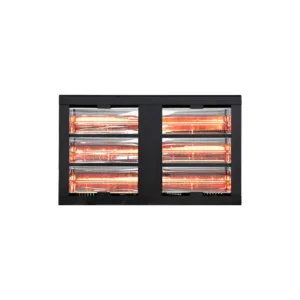

Herschel Vulcan 12S

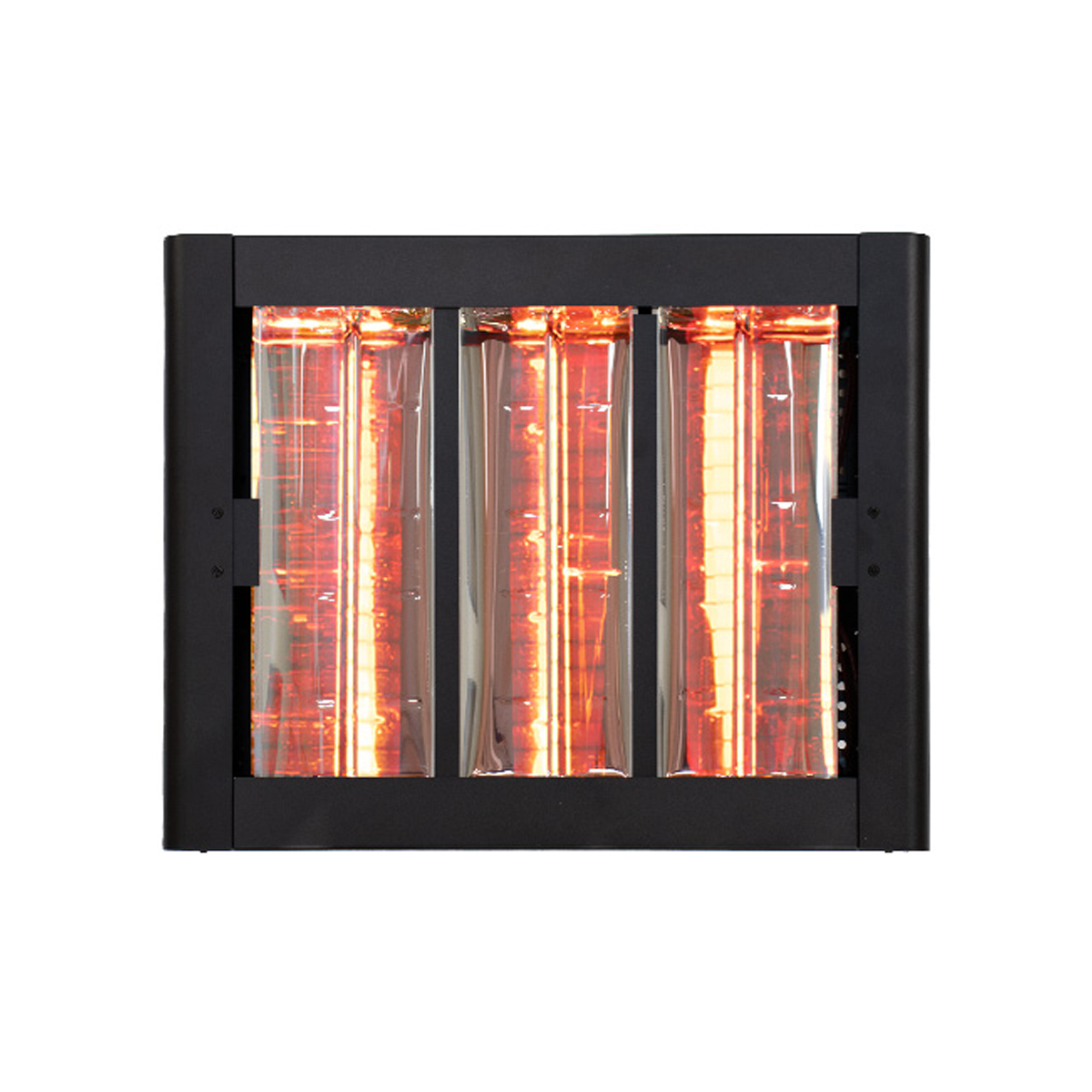

Herschel Vulcan 12S Herschel Vulcan 6L Herschel Vulcan warehouse heater

Vulcan 6 -12 kW Warehouse Heater

FROM $2,499.00

Key Features:

  • Wall or ceiling mount
  • High power Tungsten-Halogen lamps
  • Heats large areas
  • Long life components
  • Professional installation required
  • Requires 3 Phase 380 – 415V

Special order item, please contact Herschel.




52.5 x 42 x 11cm

Contact Herschel





129 x 25.5 x 11cm

Contact Herschel





87.5 x 52.5 x 11cm

Contact Herschel





129 x 39 x 11cm

Contact Herschel



Special Order Item

2 year warranty

Reduce heating Cost

Energy efficient

Professional Install

Low Maintenance

Find Out More

  • Description


    Herschel’s Vulcan 6 – 12kW Infrared workshop heaters are designed to heat large spaces like workshops and warehouses. They offer considerable advantages to operators seeking alternatives to gas or convection-based heating systems:

    • Vulcan provides heat exactly where and when you want it. Used to heat specific zones within a large space;
    • No air movement;
    • Pollution free – Vulcan does not emit any fumes and does not require additional ventilation;
    • Powerful – designed for industrial use;
    • Covers large areas from high installation heights

    The Vulcan provides for higher installation heights, better heat production in colder / higher altitude locations and a larger heated area. With a choice of wall or ceiling mounting, Vulcan offers a powerful heating option for industrial applications. Vulcan can be:

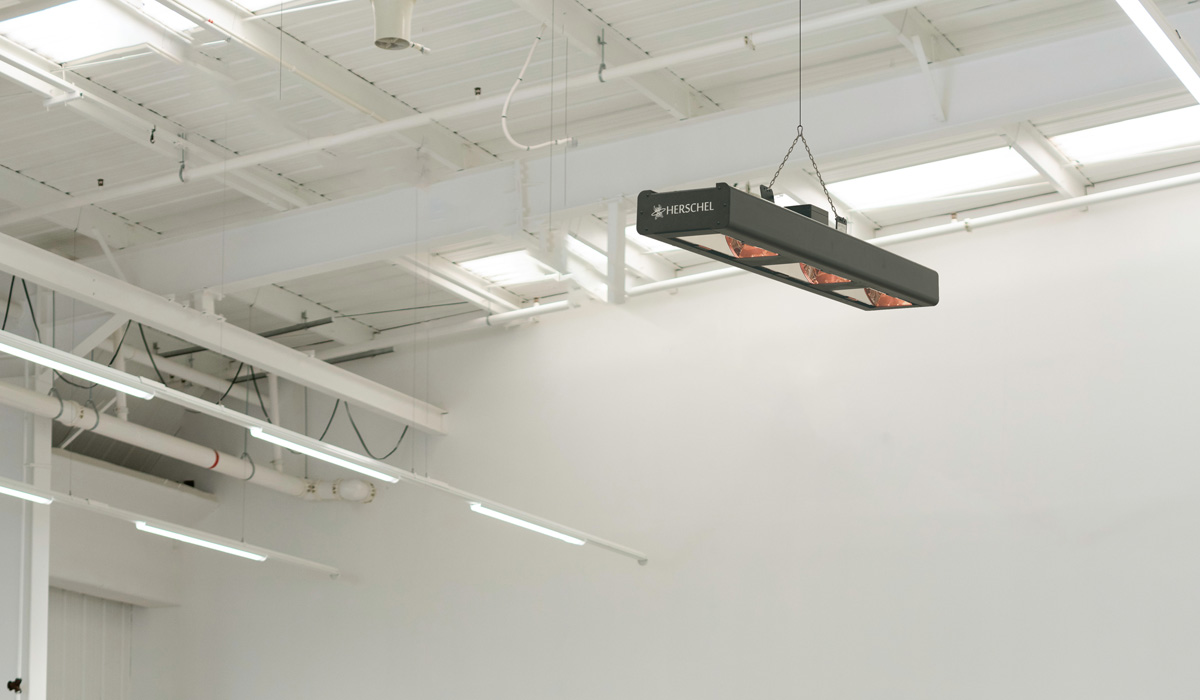

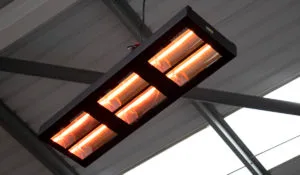

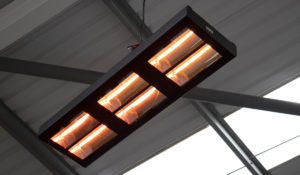

    • Mounted direct to the ceiling (brackets supplied) or;

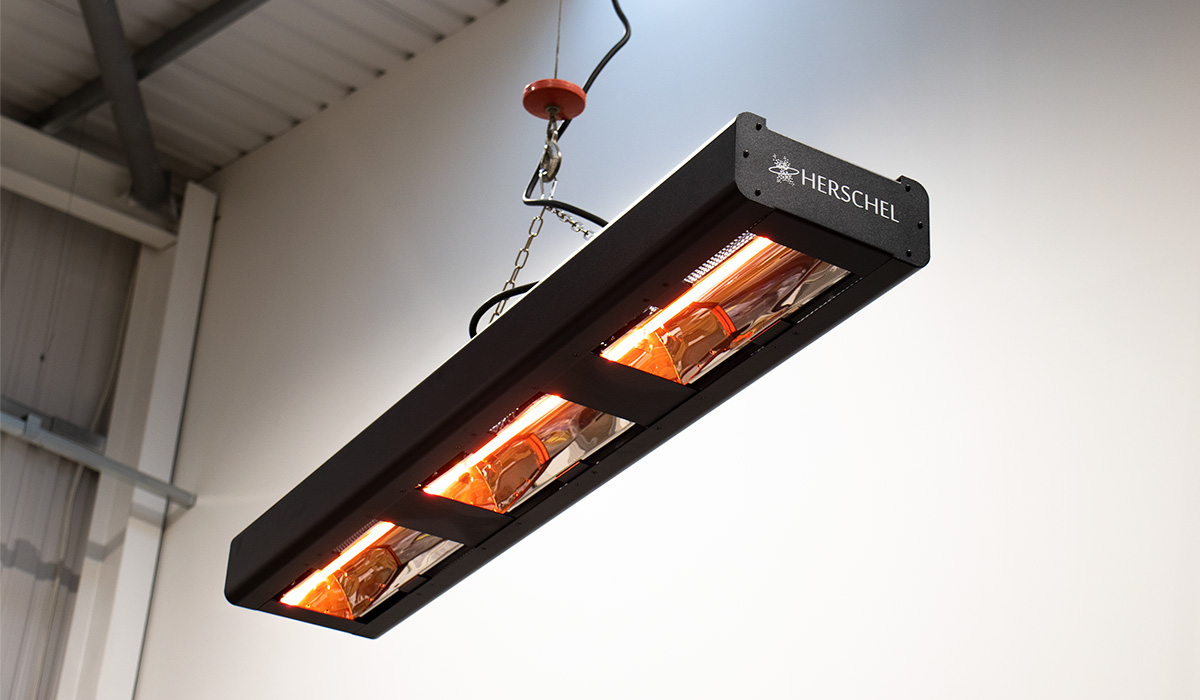

    • Ceiling suspended via wire suspension kits (an optional wire suspension kit can be purchased from a recommended supplier. Please contact Herschel for further information) or;
    • Wall mounted (brackets supplied).

    For switching the heaters on, use a 3-phase thyristor with zero cross. Herschel also offer specialised PLC controls where multiple heaters are installed (please contact Herschel for details).

    Always refer to the installation instructions before installing.

    Wiring suspension and ceiling fittings must be capable of holding 4x the heater weight.

    The Vulcan 6- 12 kW infrared workshop heater is ideal for industrial units wishing to avoid using fully convection-based or gas-based blower systems.

    Always refer to Herschel for an accurate assessment of your heating requirements.


    The Vulcan can be installed pointing vertically downwards from heights upwards of 3.5m above the ground (refer to instructions).

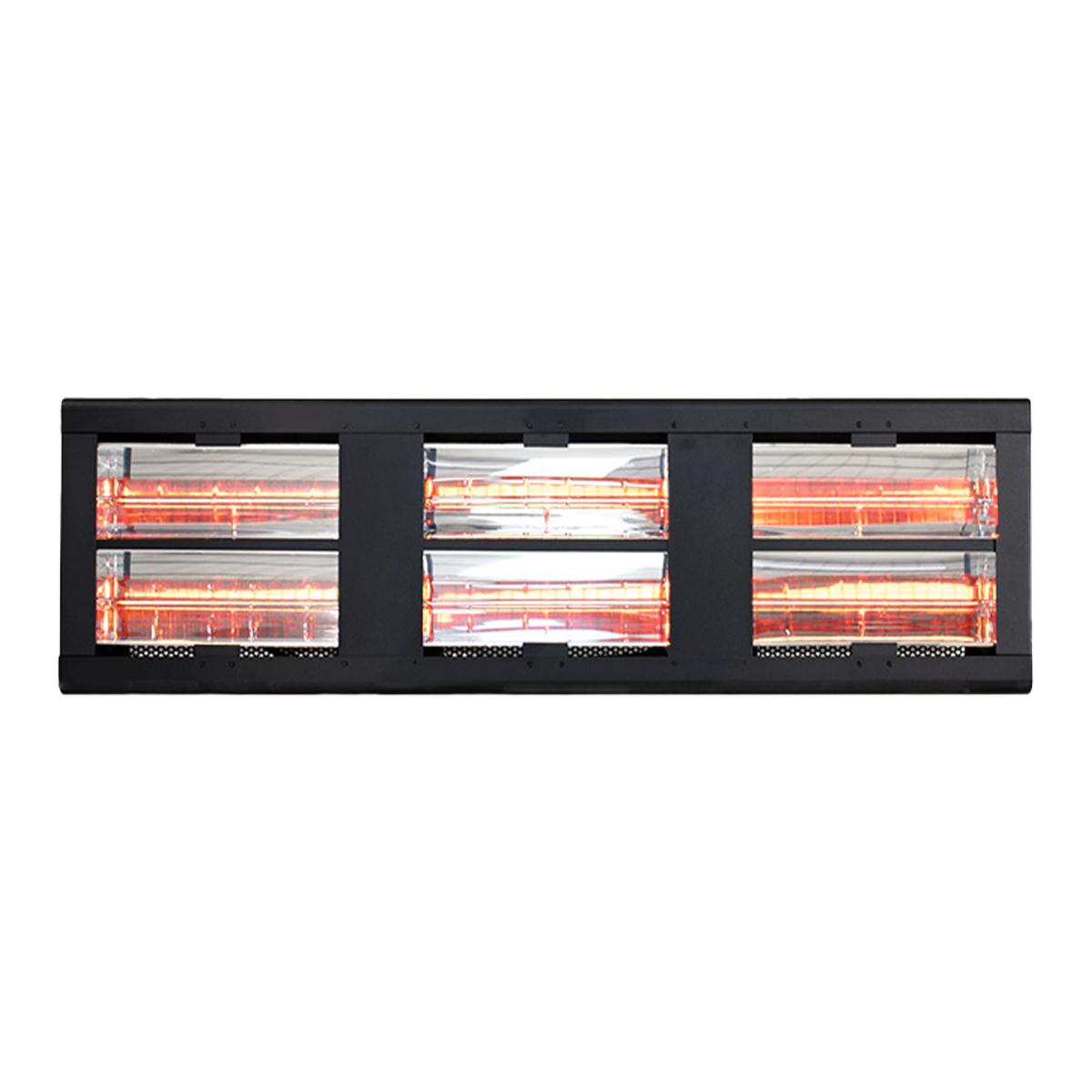

    The Vulcan ‘L’ models can also be wall-mounted at 3.5m or above and angled downwards between 20 – 30˚ (refer to instructions).

    380 – 415V 3-phase power must be used to power the Vulcan Heaters and installation must be performed by a commercial electrician. Do not exceed 415V as this will significantly shorten the operating life of the lamps.

    The Vulcan Industrial Heaters have no built-in controls. Please discuss control options with Herschel during the estimating phase of your heating project.

    Purchase price includes the first set of lamps.

  • Technical

    Technical Specifications

    Heater Type: Visibly glowing radiant heater

    Surface: Aluminium

    Colour: Black

    Cable Length: 2m

    Plug: No Plug

    Voltage: 380 - 415V

    Power Supply: 3 Phase

    Protection Class: IP65

    Installation: Wall or ceiling mounted

    Heating Element: 3 or 6 Low Glare Tungsten-Halogen Lamps

    Reflector: Mirror Aluminium

    Warm-up Time: 5 - 10 Seconds

    Useful Wavelength: 1µm

    Quality & Safety


    EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233

    AUS/ NZ Electrical Safety: Commercial Use Only

    Electromagnetic Certification: EN55014-1&2; EN60001-3-2&3

    Restriction of Hazardous Substances (RoHS): IEC62321

    Warranty: 2 Years

    Note: Warranty excludes lamps. This unit is not suitable for household or similar use.

  • Manuals and Guides
  • Reviews (0)


    There are no reviews yet.

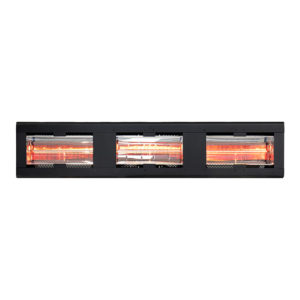

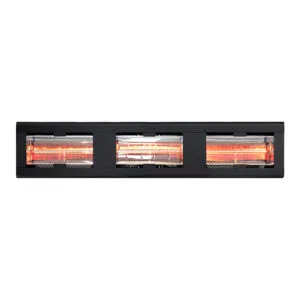

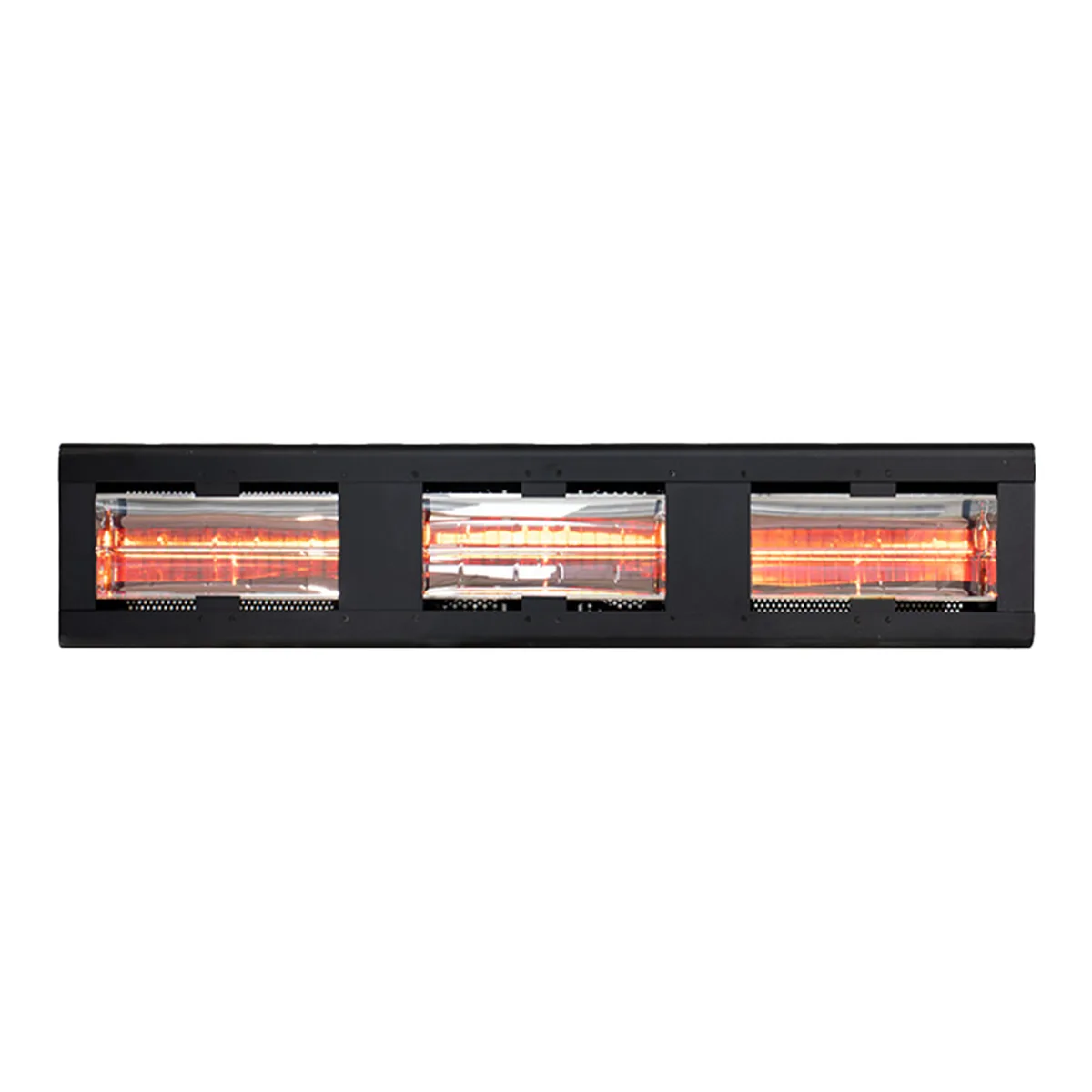

Herschel Vulcan 6L

Professional Specification Service

Herschel has a team of in-house surveyors who perform on-site and desktop estimating services for commercial heating projects.

Contact us with your project details
