Krystal Black 600 – 1000W

FROM $1,899.00

Key features:

Unique in the market
Specialised microcrystal ceramic glass
Fast-acting, quick warm up
Sleek, flush ceiling-recess install available
Herschel COSIX© Cell technology

What Panel Size Do I Need?

SpreadsheetConverter

Walls

Windows & Glazing

Roof

Intermediate Roof & Ceiling

Ground Floor

Width (m)

Length (m)

Height (m)

External walls

Glazed Area (m2)

Floor Level

Please Fill Out All Fields Above

Choose a panel or a number of panels that at least cover your wattage requirement. For further assistance just contact one of our friendly team for advice.
Please read our Terms of Use before relying on the results of this wattage estimator.

MODEL / WATTAGE	DIMENSIONS	HEATS M²	PRICE
Krystal-600-B 600W	27 x 57cm	11 - 13	$1,899.00	BUY
Krystal-1000-B 1000W	27 x 57cm	14 - 23	$2,299.00	BUY

MODEL / WATTAGE

DIMENSIONS

HEATS M²

PRICE

Krystal-600-B

600W

27 x 57cm

11 - 13

$1,899.00

BUY

Krystal-1000-B

1000W

27 x 57cm

14 - 23

$2,299.00

BUY

Rapid Dispatch

5 year warranty

Reduce heating Cost

Energy efficient

Easy Installation

Zero Maintenance

Find Out More

Description

Description

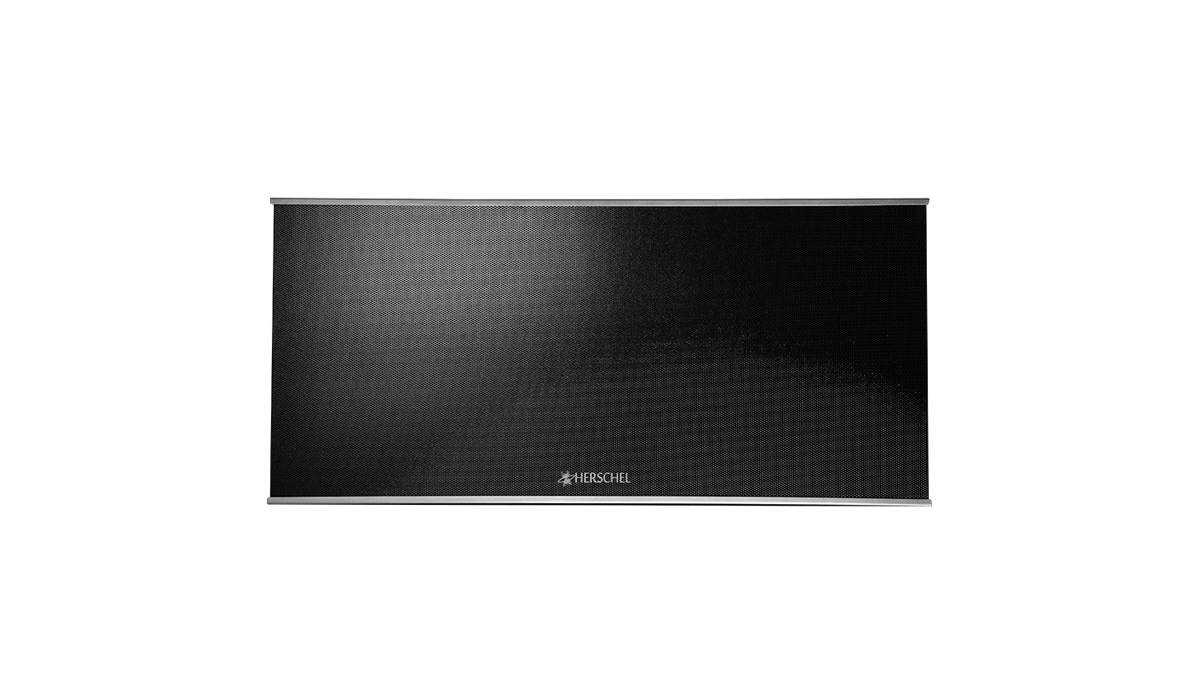

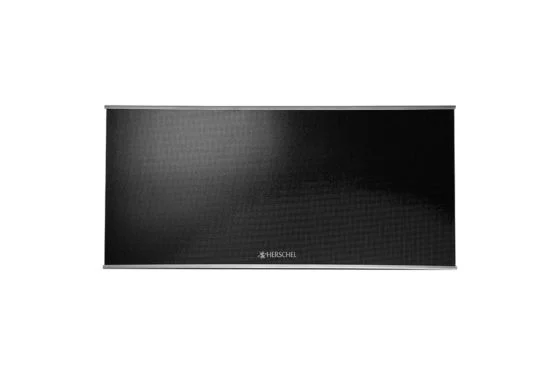

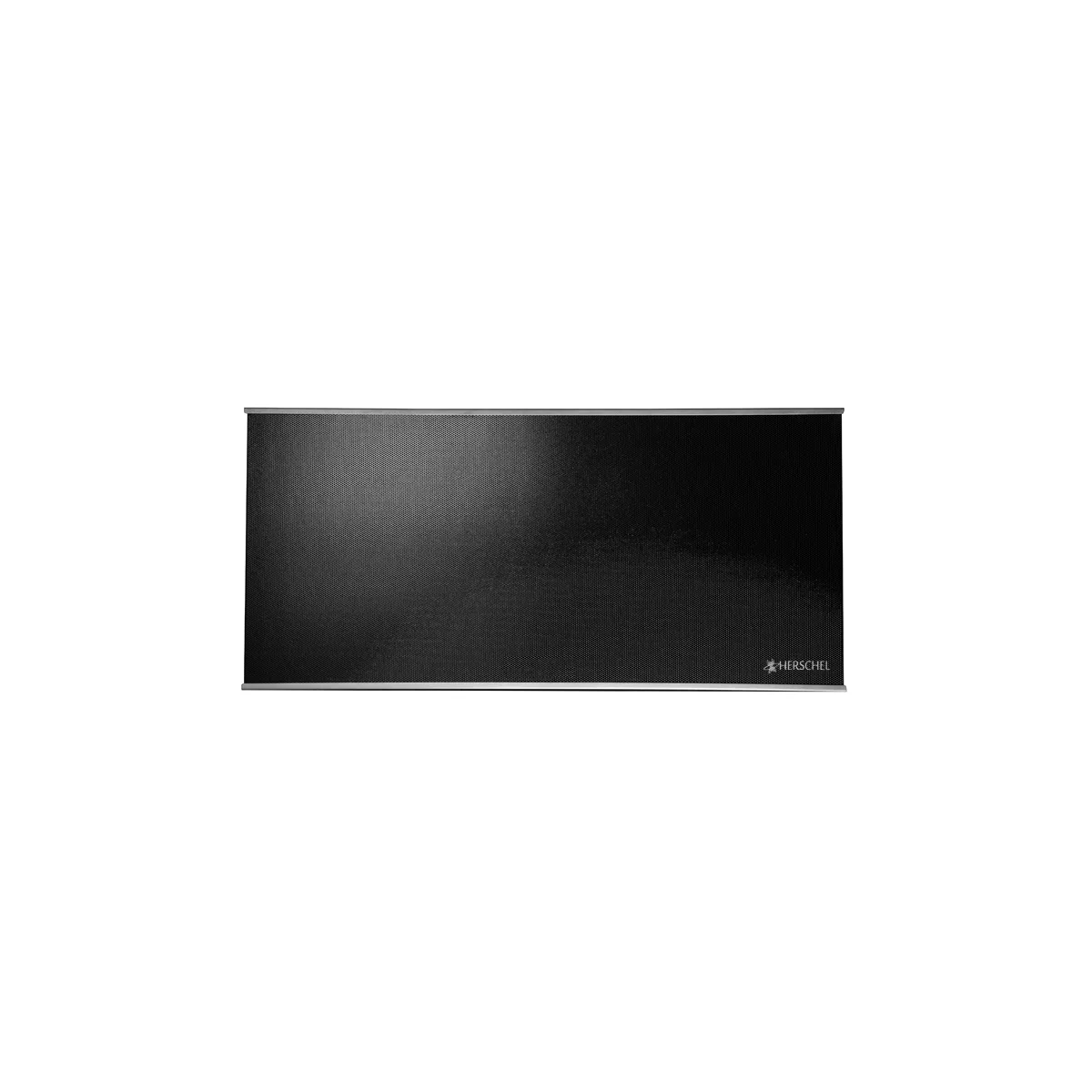

Unique in the market, the Herschel Krystal infrared panel heater is revolutionary in design, efficiency, performance and comfort. Constructed using specialised microcrystal ceramic glass and Herschel’s innovative COSIX© Cell infrared heating technology, Krystal offers a highly attractive, sleek and compact solution that can be neatly recessed into ceilings to ensure a contemporary, seamless finish for any interior.

At less than a quarter of the size of most far infrared panel heaters but offering similar power output, Krystal’s big advantages are in its space-saving and fast warm-up times. The Krystal Black glass panel is available in either 600W or 1000W in a 27 x 57cm unit. This is also available in white.

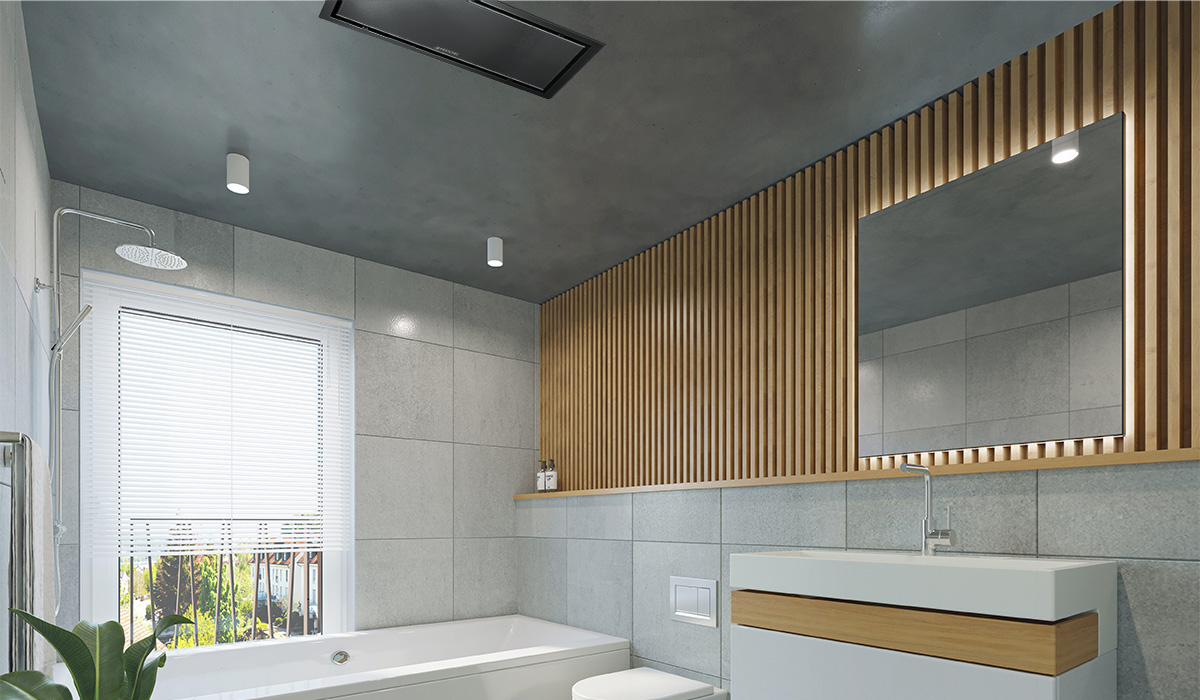

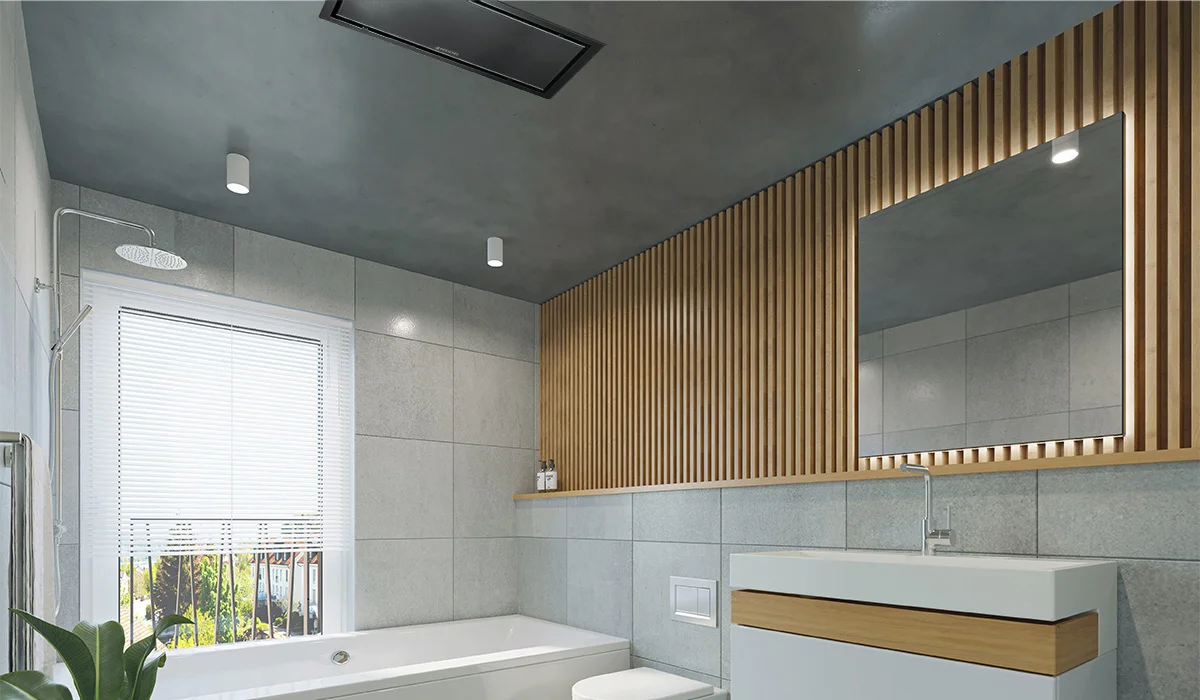

The high temperature Krystal heater provides fast warm-ups, ideal for comfortably heating both domestic properties or commercial heating applications. The Krystal is designed for ceiling mounting in rooms and can also be wall mounted in large spaces.

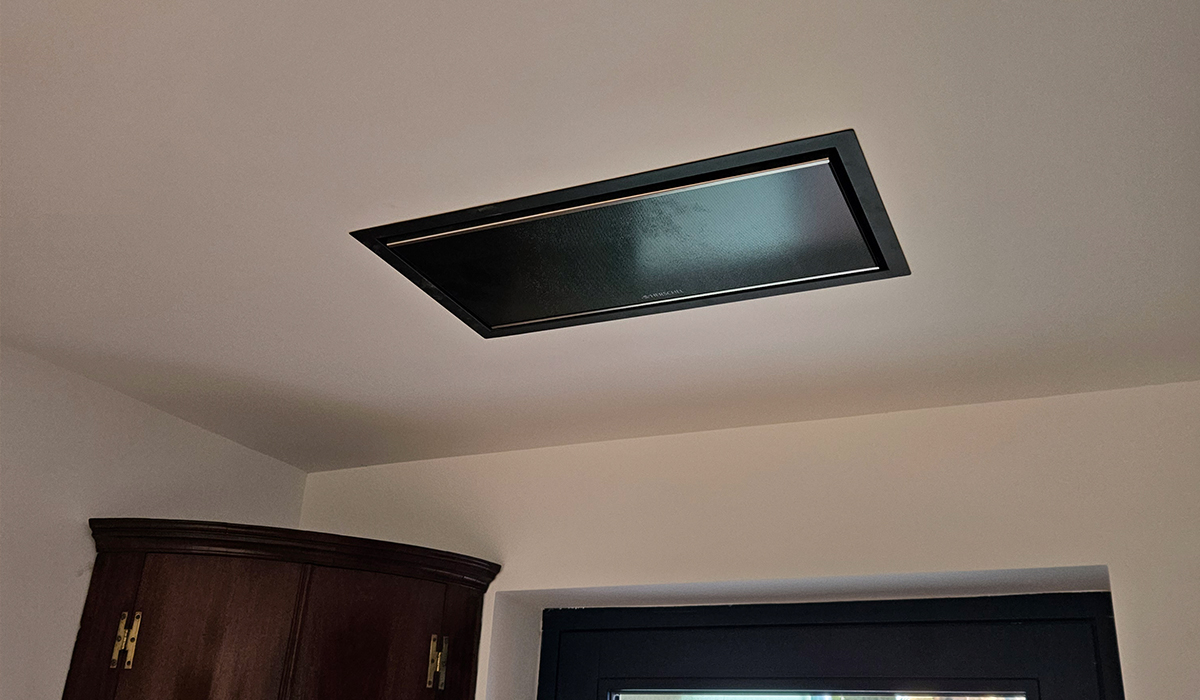

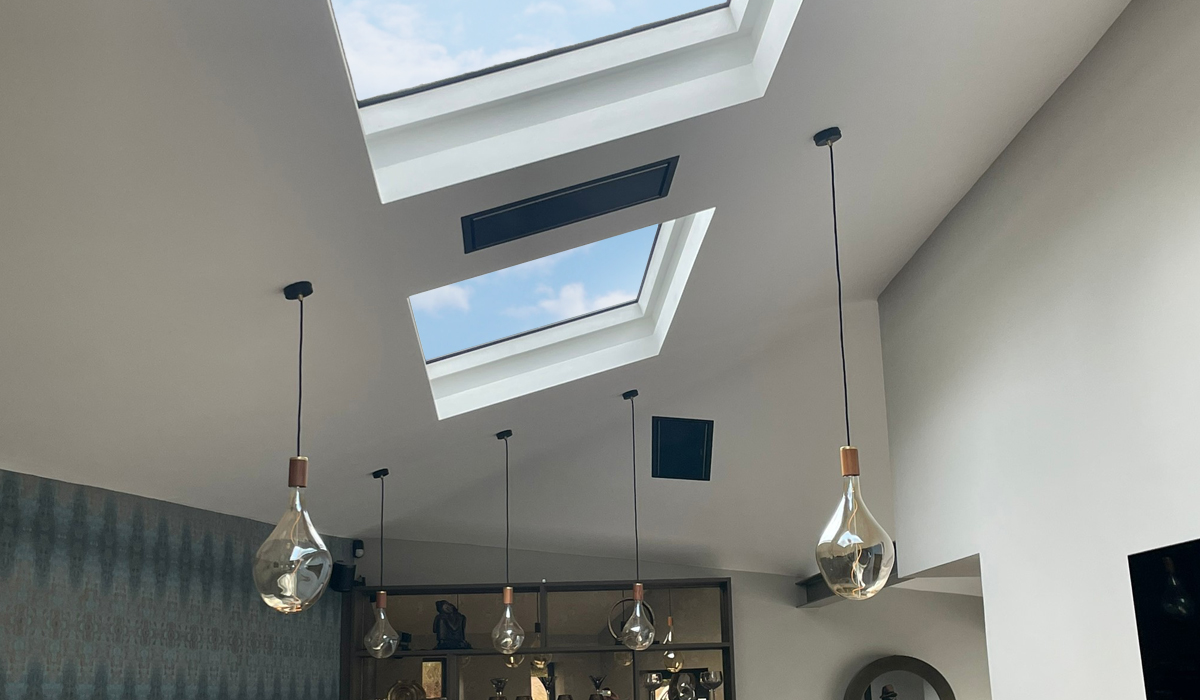

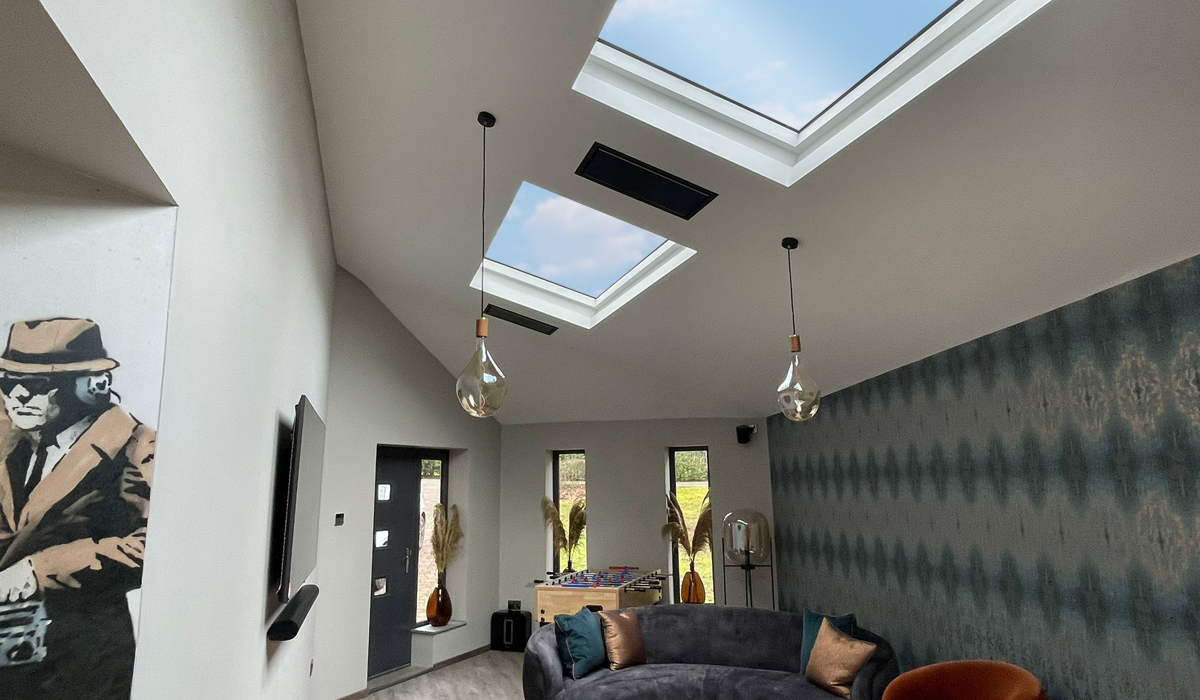

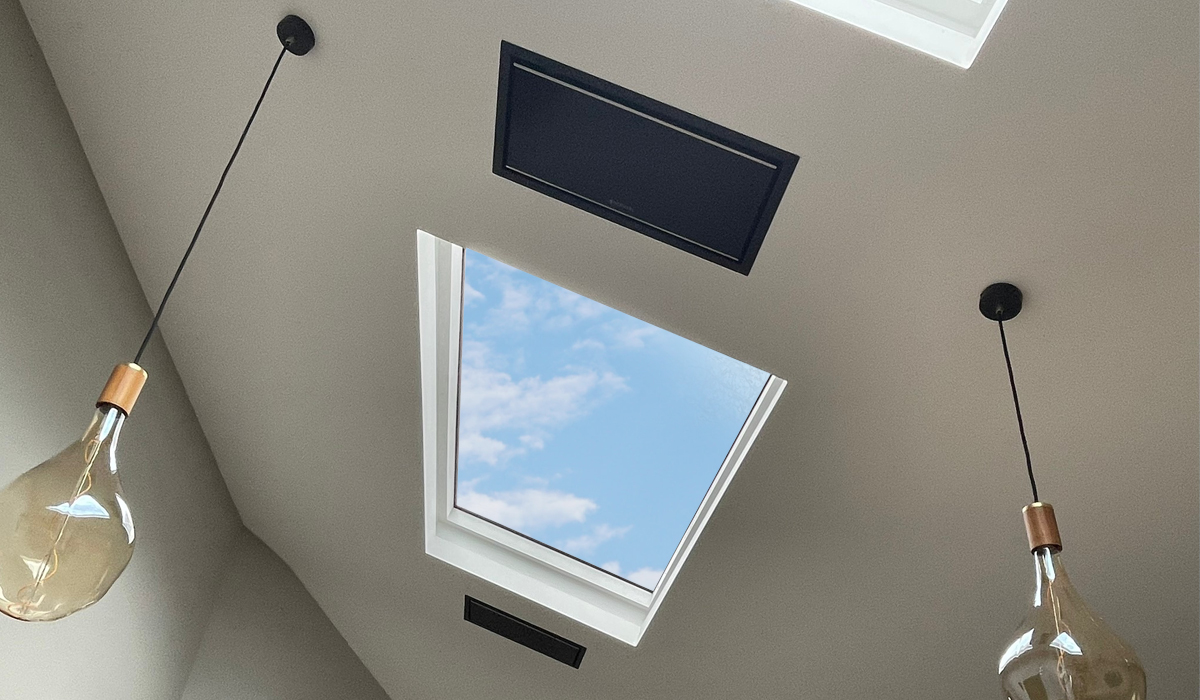

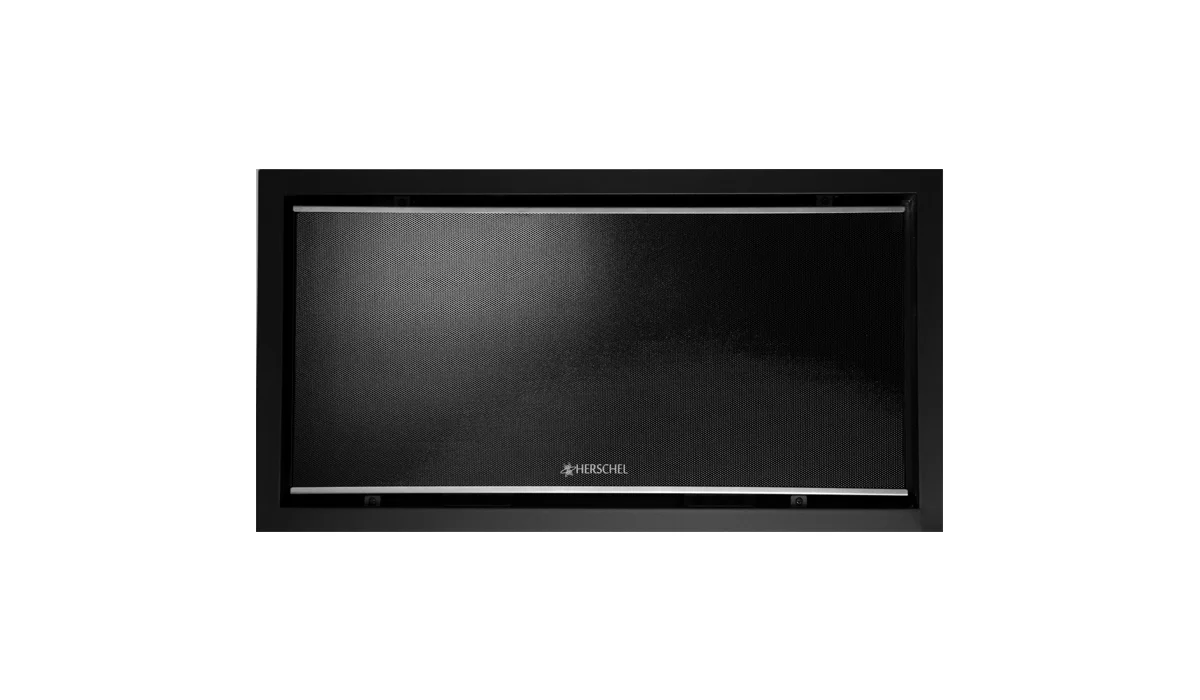

For a designer flush finish, the Krystal recessed ceiling mounting kit can be purchased (separately) allowing Krystal to be recessed into plasterboard ceilings that have a void. For solid ceilings, the low profile surface mounting kit allows Krystal to be mounted discreetly onto the ceiling. The surface mounting kit is also an optional extra. (Wall mounting swivel brackets are supplied, as standard). The mounting options can be seen in the datasheet and gallery image.

Control of the Herschel Krystal infrared panel heater is via hard wiring to one of Herschel’s iQ range of thermostats (purchased separately). Due to its fast warm-up times, Krystal also works exceptionally well with Herschel’s PIR sensor, so you can fine-tune your energy use to set infrequently used rooms to a lower temperature and boost the power only when you’re in them.

Krystal has a high surface temperature and must be installed out of reach. Minimum ceiling heights of 2.4m are advised for ceiling mounting. Minimum 2.1m mounting height is required for wall mounting.
Professional installation by an electrician is required.

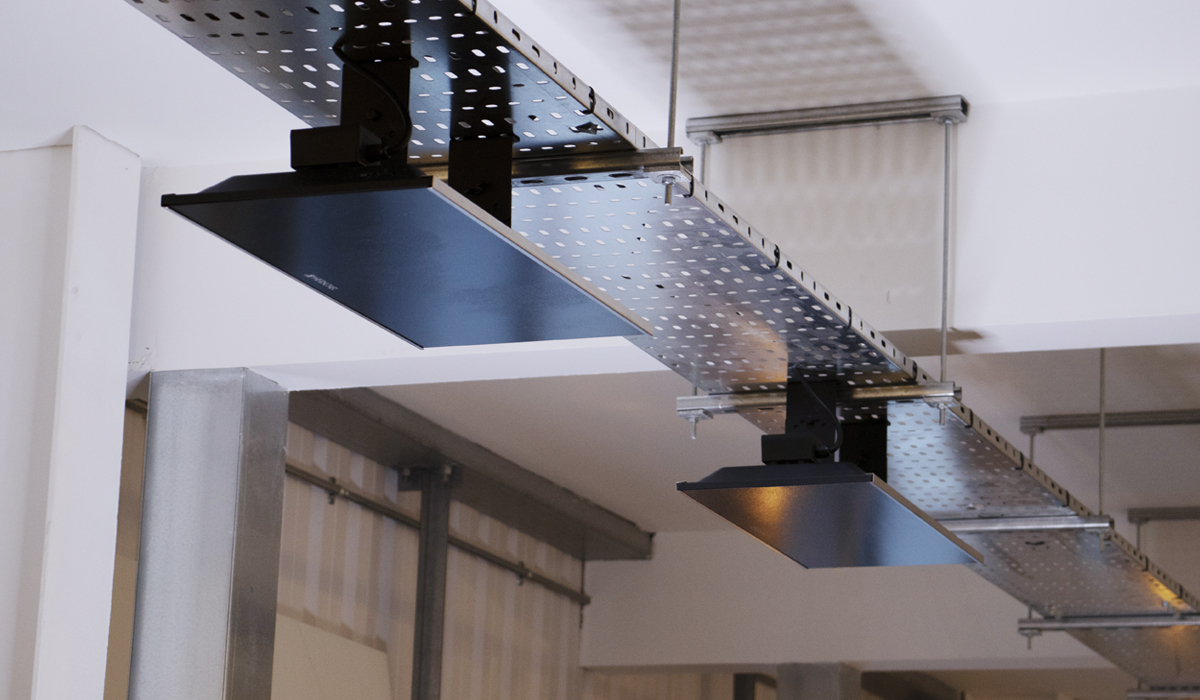

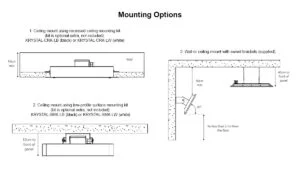

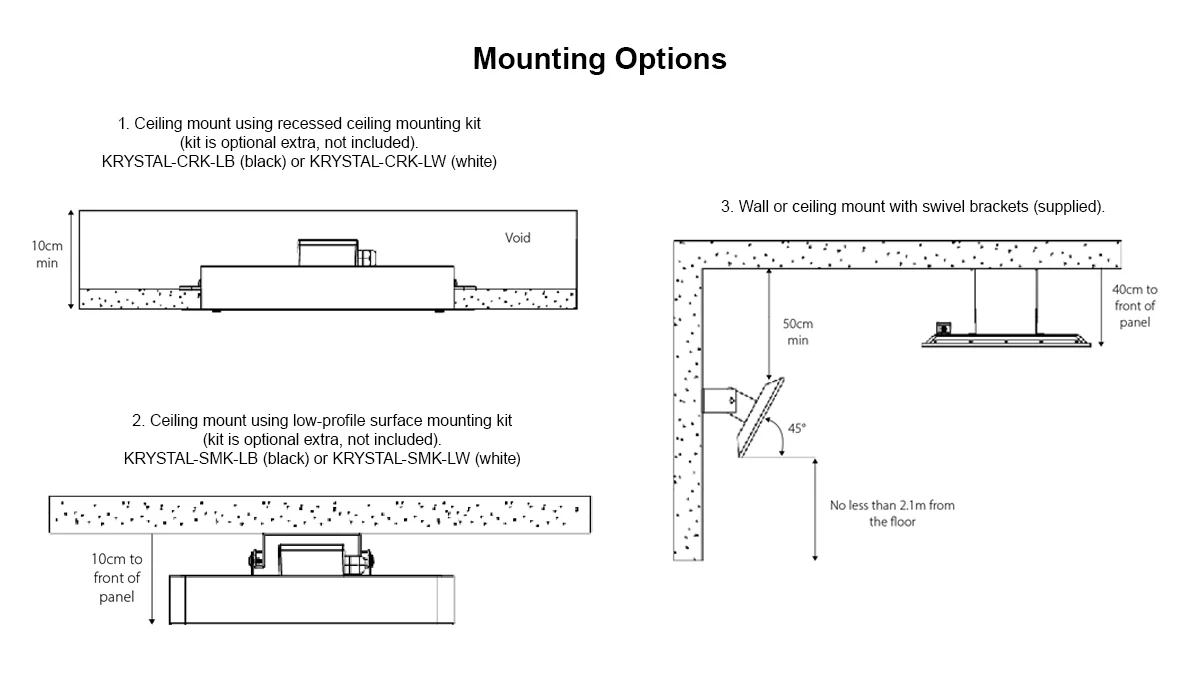

Please consider your ceiling mounting preference when ordering. Note swivel brackets are supplied, the alternative mounting brackets require additional kits to be purchased.
Technical

Technical Specifications
Heater Type: Fixed electric high temperature infrared heater
Surface: Microcrystal Glass
Colour: Black
Rear Case: Steel
Surface Temperature: 280 - 350°C
Cable Length: 1.9m
Plug: No Plug
Voltage: 220 - 240V 50 Hz
Protection Class: IP44
Installation: Wall or ceiling mounted
Heating Element: Herschel COSIX © Cell Technology
Warm-up Time: <10 Minutes
Useful Wavelength: 3 - 10µm
Quality & Safety
EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233
AUS/ NZ Electrical Safety: AS/NZS 60335-1; 60335-2-30
Electromagnetic Compatibility: EN55014-1&2; EN60001-3-2&3
Restriction of Hazardous Substances (RoHS): IEC62321
Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls
Warranty: 5 Years
Manuals and Guides

Krystal Data Sheet Click to download

Krystal Installation Instructions Click to download

Mounting Instructions for optional ceiling kits (available separately):

Ceiling Recess Kit :

Ceiling Recess Kit Instructions Click to download

Ceiling Surround Mount Kit :

Ceiling Surround-mount Instructions Click to download
Controls / Accessories
Control Options (Required)
- Herschel iQ MD2 Wired Thermostat
  $199.00
  BUY

  Herschel iQ MD2 Wired Thermostat

  The Herschel iQ MD2 Wired Thermostat is ideal for new builds / renovations where cabling can be neatly hidden whether it be for domestic or commercial applications. When used in conjunction with your wifi network and the SmartLife app, MD2 can also be controlled remotely via the internet, enabling you to manage your heating when you are away from the building. The SmartLife App also enables control of your heating by voice using Alexa or Google Assistant.

  MD2 is wired directly to the mains circuit and to the heaters and requires recessing into the wall.

  The MD2 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MD2 is easy to operate, featuring a large digital touchscreen display and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

  MD2 has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties. The MD2 is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.

  Note: Herschel iQ controls will only work with Herschel heaters. *Attempted use with any other heater brand will invalidate the warranty.

  BUY
- Herschel iQ T-MKW Mains Powered WiFi Thermostat White
  $269.00
  BUY

  Herschel iQ T-MKW Mains Powered WiFi Thermostat White

  The award-winning design of the Herschel iQ MKW Mains Powered WiFi Thermostat is ideal for new builds / renovations where cabling can be neatly hidden whether it be for domestic or commercial applications and can control temperatures of up to 45°C. When used in conjunction with your WiFi network and the SmartLife App, MKW can run in fully programmable ‘Smart Mode’ enabling you to manage your heating as efficiently as possible whether you are home or away.

  MKW is wired directly to the mains circuit and to the heaters and requires recessing into the wall or can be surface-mounted to the wall with a back box.

  The MKW thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MKW is easy to operate via the SmartLife App or via push buttons and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

  MKW has a keypad locking feature (available from the App) to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties. The MKW is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected. They can be used with the Inspire, Select XLS or Herschel space heating range.

  If using the MKW with the Select XLS panel range the SMART-R function of the XLS panel will be bypassed. The thermostat will have to be hard-wired directly to the heater as well as the mains. (It is not possible to pair wirelessly with the panel).

  Note: Herschel iQ controls will only work with Herschel heaters. *Attempted use with any other heater brand will invalidate the warranty.

  BUY
- Herschel iQ T-MKS Mains Powered WiFi Thermostat Silver
  $279.00
  BUY

  Herschel iQ T-MKS Mains Powered WiFi Thermostat Silver

  With its award-winning designer finish and smart, flexible control via the SmartLife App, the Herschel iQ MKS Mains powered WiFi Thermostat provides the ideal choice for control of your infrared heating system. Perfect for new builds and renovations where cabling can be neatly hidden whether it be for domestic or commercial applications and can control temperatures of up to 45°C. When used in conjunction with your WiFi network and the SmartLife App, MKS can run in fully programmable ‘Smart Mode’ enabling you to manage your heating as efficiently as possible whether you are home or away.

  MKS is wired directly to the mains circuit and to the heaters and requires recessing into the wall or can be surface-mounted to the wall with a back box.

  The MKS thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MKS is easy to operate via the SmartLife App or via push buttons and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

  MKS has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties. The MKS is a 16 Amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected. They can be used with the Inspire, Select XLS or Herschel space heating range.

  If using the MKS with the Select XLS panel range the SMART-R function of the XLS panel will be bypassed. The thermostat will have to be hard-wired directly to the heater as well as the mains. (It is not possible to pair wirelessly with the panel).

  Note: Herschel iQ controls will only work with Herschel heaters. *Attempted use with any other heater brand will invalidate the warranty.

  BUY
- Herschel iQ T2 Wireless Thermostat Pack
  $199.00
  BUY

  Herschel iQ T2 Wireless Thermostat Pack

  The Herschel iQ T2 Thermostat pack (including one T2 thermostat plus R2 Receiver) incorporates the very latest energy-saving technology and is specifically designed to regulate Herschel Infrared heaters. When used with wifi you can also regulate your heating remotely using the SmartLife App.

  Easy to install it is perfect for installations where hard wiring to the MD2 Thermostat would be impractical (for example, if you wish to minimise chasing out walls/cable trunking).

  The T2 pack comprises a battery operated, wireless T2 Thermostat which can be wall mounted or free standing (and also includes one R2 Receiver).

  The R2 Receiver must be wired to the mains electricity supply and also to the Herschel heater(s). The T2 and R2 are paired wirelessly to each other and the R2 can also be paired to your wifi for SmartLife app control (if required).

  The T2 will then control all R2s which are paired to it. The T2 pack will control up to 2kW (at 230V supply) of Herschel Infrared heaters on one electrical circuit. To control more heaters in the same zone, or if you wish to use one R2 Receiver per heater, simply purchase additional R2 receivers and pair them to the T2.

  The T2 features 2 manual modes and 7 x 1 day programming and is an easy to operate thermostat. The T2 incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use.

  Note:

  Herschel controls will only work with Herschel heaters. Attempted use with any other heater brand will invalidate the warranty.

  A T2 must be used even if SmartLife app control is to be the primary means of controlling your heating (i.e. you cannot use just the App and R2).

  The T-T2 pack incorporates one T2 thermostat and one R2 Receiver.

  BUY
Optional Accessories
- Touch Screen Control Centre
  $699.00
  BUY

  Touch Screen Control Centre

  Take full control of your heating routines with the Herschel Touch Screen Control Centre, a central hub where you can activate Smart Life Scenes to fully customise your heating to fit around your schedule. Decided to head out for the day or going on holiday for longer? Save energy by never heating an empty home through Tap-to-Run Scenes, which can override any existing Schedules to ensure you have full control over your infrared heating. The Touch Screen Control Centre can be conveniently controlled using the 4″ touch screen display; where you can quickly access two of your chosen Scenes from the home screen, or simply swipe right to find all Configured Scenes on your Smart Life app. This display also features the time, date, and weather status.

  Not home? The Touch Screen Control Centre can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

  The Touch Screen Control Centre is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Touch Screen Control Centre is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

  The unit size is 86 x 86 x 36mm.

  Note: The Touch Screen Control Centre will not work with the T-BT Battery Powered Thermostat.

  BUY
- Four Scene Control – White
  $229.00
  BUY

  Four Scene Control – White

  Easily activate 4 Tap-to-Run Scenes with the Herschel Four Scene Control to fully control your heating, your way. With unlimited potential, you can create Scenes that are perfect for your routines, and conveniently activate them with one tap of a button using this smart control. This control is designed to be used with Tap-to-Run Scenes through Smart Life, which can override any Schedules to give you more control with a tap of a button. Going on holiday? Simply tap the Holiday icon and your infrared heaters will automatically stay off until you are back, helping to save energy and reduce running costs. Feeling cold? Tap the On icon to turn your infrared heaters on to give you a boost in heating. You can assign any Scene to any button through the Smart Life App to make the control personalised to you and your heating preferences.

  There are 4 colour options available for your Four Scene Control; White, Brushed Silver, Brushed Gold and Black. Size is 86 x 86 x 33mm.

  Not home? The Four Scene Control can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

  The Four Scene Control is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Four Scene Control is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

  Note: The Four Scene Control will not work with the T-BT Battery Powered Thermostat.

  BUY
- Four Scene Control – Brushed Silver
  $229.00
  BUY

  Four Scene Control – Brushed Silver

  Easily activate 4 Tap-to-Run Scenes with the Herschel Four Scene Control to fully control your heating, your way. With unlimited potential, you can create Scenes that are perfect for your routines, and conveniently activate them with one tap of a button using this smart control. This control is designed to be used with Tap-to-Run Scenes through Smart Life, which can override any Schedules to give you more control with a tap of a button. Going on holiday? Simply tap the Holiday icon and your infrared heaters will automatically stay off until you are back, helping to save energy and reduce running costs. Feeling cold? Tap the On icon to turn your infrared heaters on to give you a boost in heating. You can assign any Scene to any button through the Smart Life App to make the control personalised to you and your heating preferences.

  There are 4 colour options available for your Four Scene Control; White, Brushed Silver, Brushed Gold and Black. Size is 86 x 86 x 33mm.

  Not home? The Four Scene Control can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

  The Four Scene Control is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Four Scene Control is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

  Note: The Four Scene Control will not work with the T-BT Battery Powered Thermostat.

  BUY
- Krystal – Black Low Profile Surface Mounting Kit
  $229.00
  BUY

  Krystal – Black Low Profile Surface Mounting Kit

  The Krystal Black Surface Mounting Kit allows low profile surface mounting of the Krystal heater to the ceiling and is also available in white (KRYSTAL-SMK-LW).

  BUY
- Krystal – Black Ceiling Recess Kit
  $229.00
  BUY

  Krystal – Black Ceiling Recess Kit

  The Black Krystal Ceiling Recess Kit enables flush installation of the Krystal heater into plasterboard ceilings that have a void. The Kystal Ceiling Recess Kit is also available in white (KRYSTAL-CRK-LW).

  BUY
- PIR Sensor
  $119.00
  BUY

  PIR Sensor

  The PIR Sensor works with Herschel Wifi-enabled thermostats to give you extra energy savings on your heating based on room occupancy when the heating is on. (Why have the heating on full blast in a room noone is in?).

  We recommend you set up your Herschel Thermostats to run in Smart Mode as normal.

  But then with the PIR sensor you can add “Scenes” to the Smartlife App (see an example Scene here) to turn the thermostat down if you are away from the room and turn it back up when you return. Say, for example, your living room is usually set for 21°C from 18:30 until 22:30, but you go out to dinner. Rather than keep heating a room you are not in, the PIR Sensor will turn your heating down while you are out.

  As another example, you can also use it to keep the heating on if (for example) you are working late in a room that usually turns its heating down earlier in the evening.

  The PIR Sensor is a battery operated WiFi unit. You will need one sensor for each room you want to check for occupancy. The sensor will work effectively in small to medium-size houses (e.g. 2-3 bedrooms) when paired directly to the main router. For larger buildings using network extenders, the sensors should be paired with the extenders.

  The PIR sensor must be used in conjunction with a Herschel Thermostat, it will not control your heating just on its own.

  Click here to watch our video on how to use Smart Life Scenes with the Herschel PIR Sensor:

  BUY
