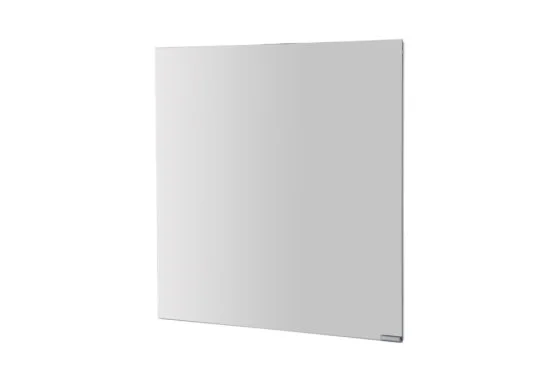

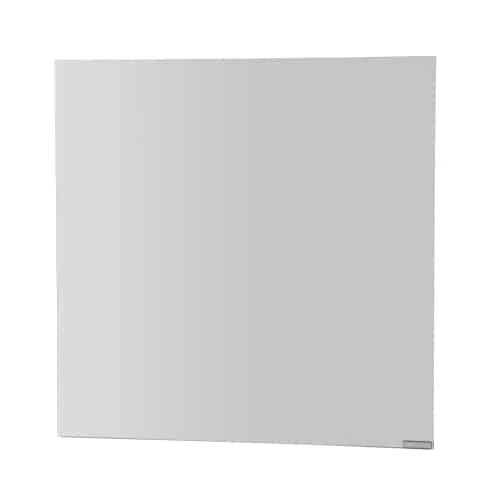

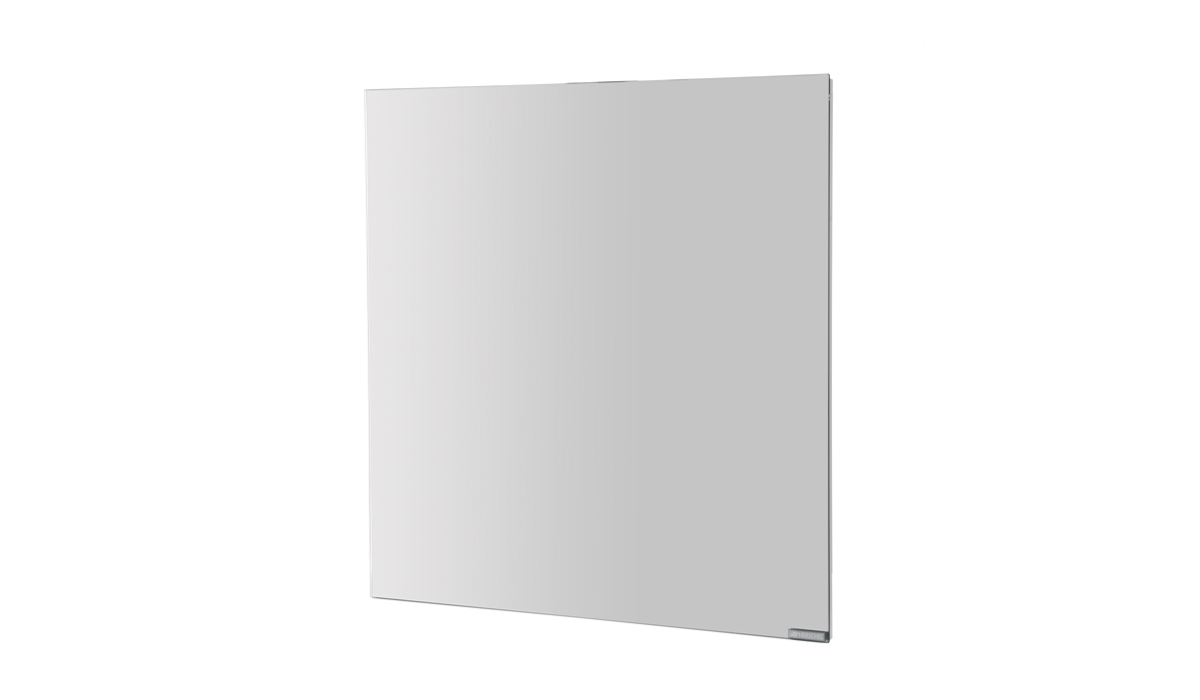

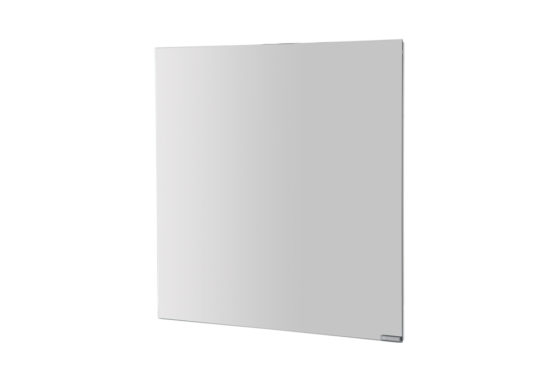

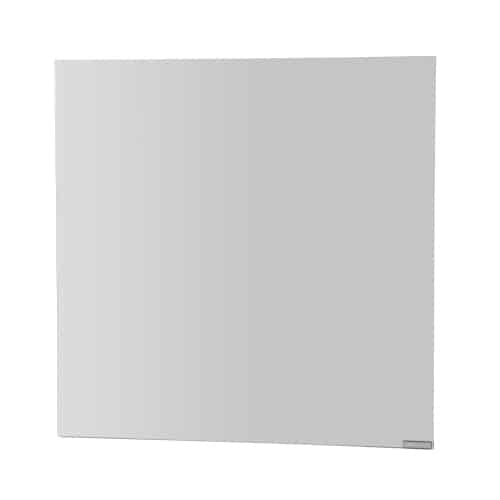

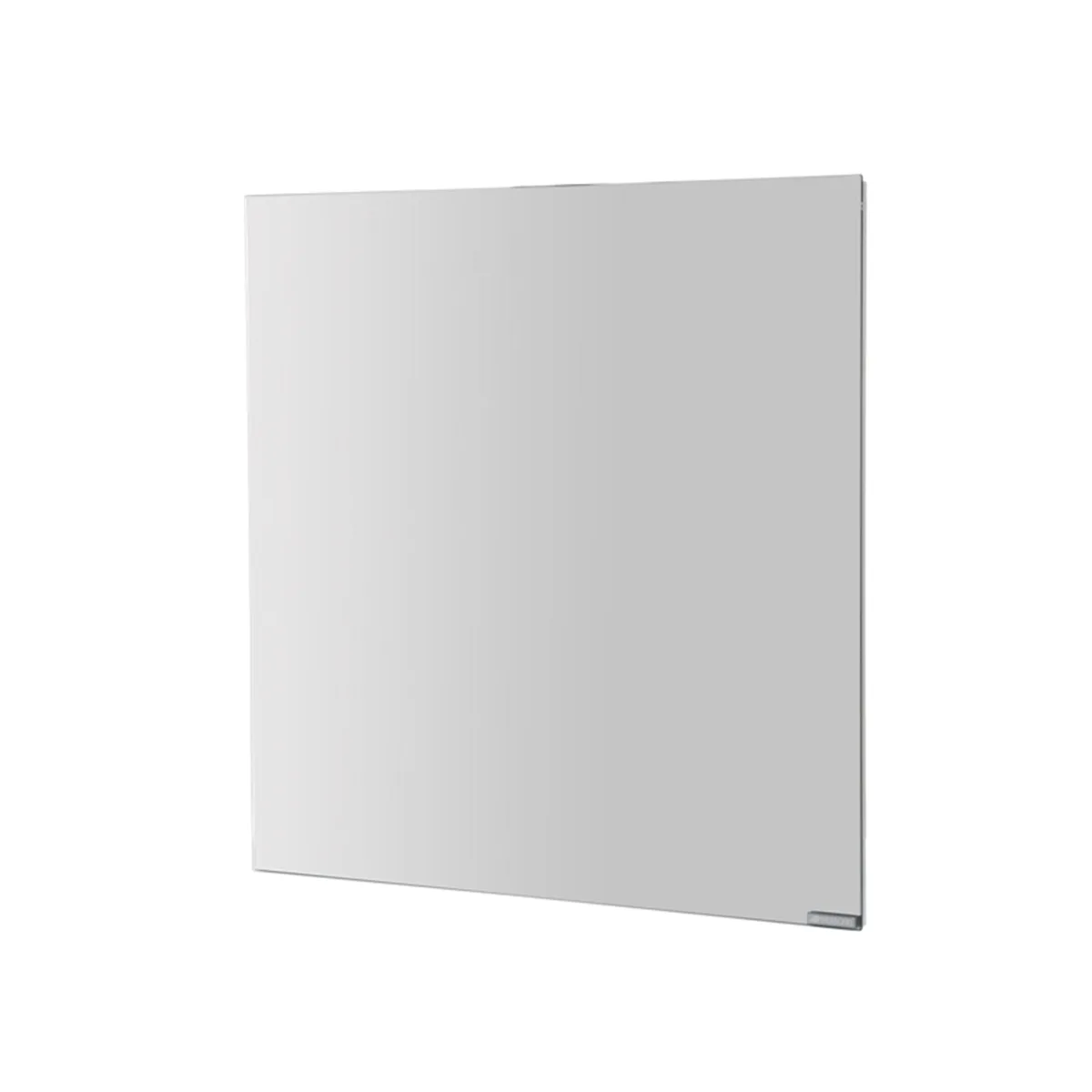

Select XLS – Mirror Infrared Heater

FROM $799.00

Rated 5.00 out of 5 based on 1 customer rating

(4 reviews)

Select XLS – Mirror Infrared Heater

FROM $799.00

Rated 5.00 out of 5 based on 1 customer rating

(4 reviews)

Key Features:

Integrated SMART-R technology
Suitable for bathrooms
Helps reduce damp
Steam-free mirror heater when on
Wall mount only
Use with Herschel XLS controls

What Panel Size Do I Need?

SpreadsheetConverter

Walls

Windows & Glazing

Roof

Intermediate Roof & Ceiling

Ground Floor

Width (m)

Length (m)

Height (m)

External walls

Glazed Area (m2)

Floor Level

Please Fill Out All Fields Above

Choose a panel or a number of panels that at least cover your wattage requirement. For further assistance just contact one of our friendly team for advice.
Please read our Terms of Use before relying on the results of this wattage estimator.

MODEL / WATTAGE	DIMENSIONS	HEATS M²	PRICE

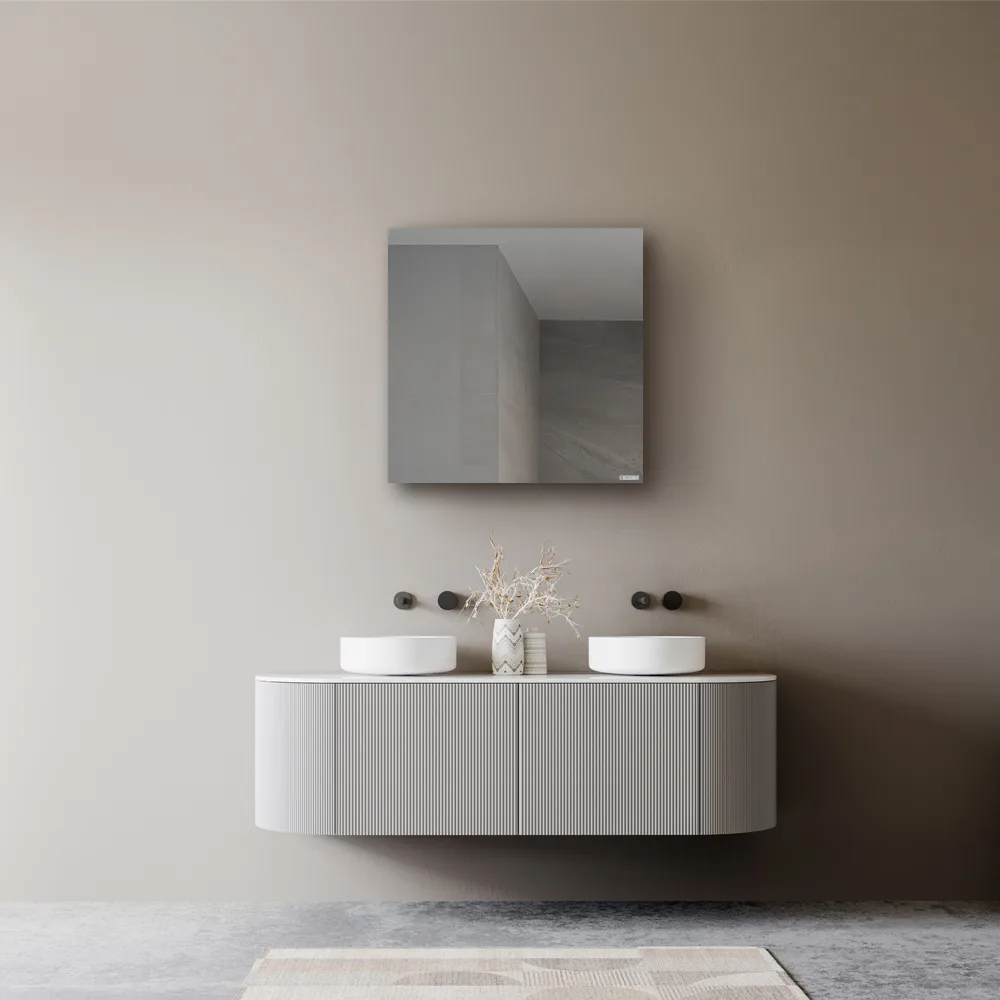

XLS350M 350W	60 x 60cm	6 - 8	$799.00	BUY
XLS500M 500W	60 x 85cm	9 - 12	$949.00	BUY

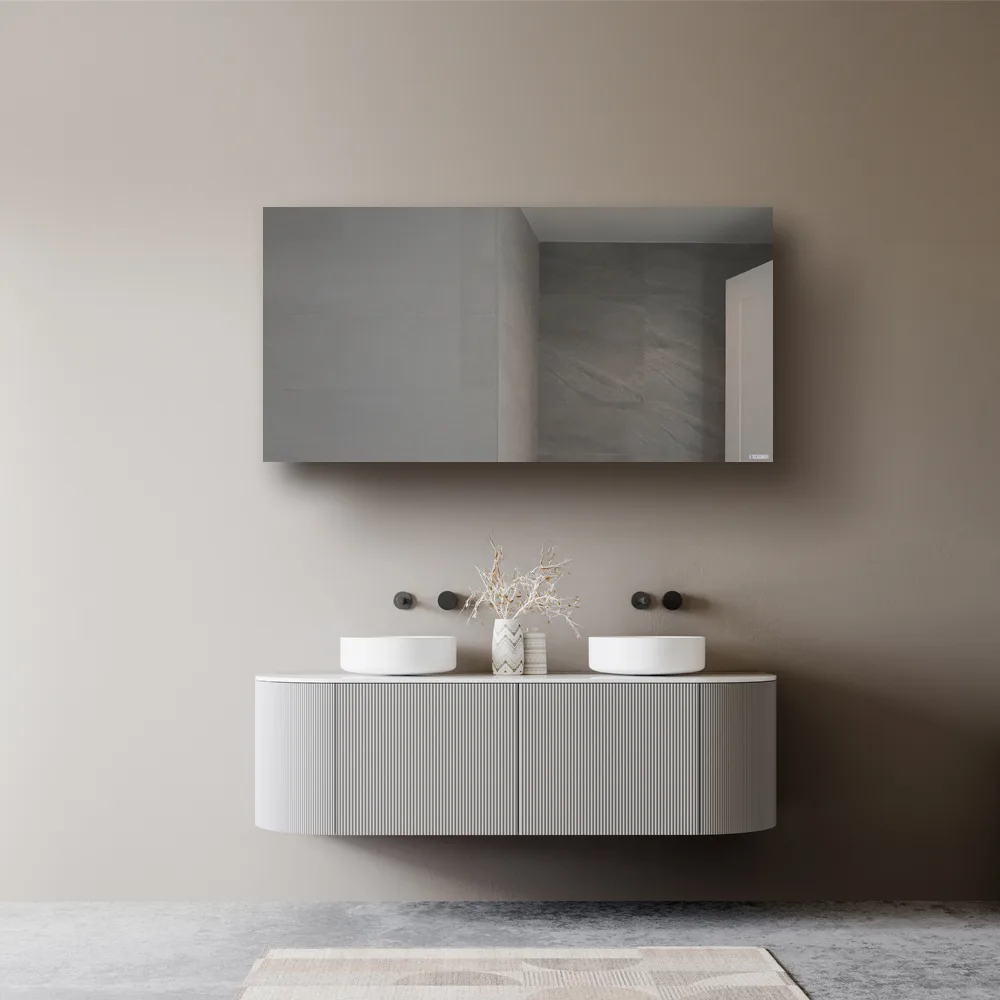

XLS700M 700W	60 x 120cm	13 - 15	$1,099.00	BUY

MODEL / WATTAGE

DIMENSIONS

HEATS M²

PRICE

XLS350M

350W

60 x 60cm

6 - 8

$799.00

BUY

XLS500M

500W

60 x 85cm

9 - 12

$949.00

BUY

XLS700M

700W

60 x 120cm

13 - 15

$1,099.00

BUY

Rapid Dispatch

5 year warranty

Reduce heating Cost

Energy efficient

Easy Installation

Zero Maintenance

Find Out More

Description

Description

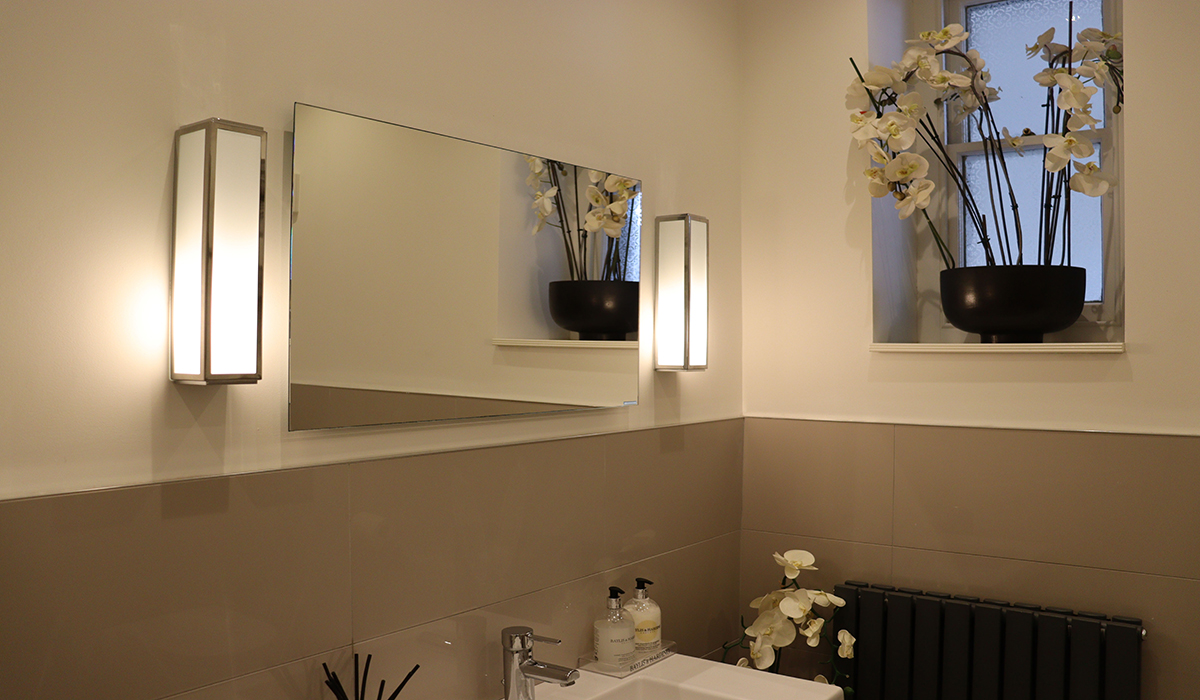

The Herschel Select XLS Infrared Mirror Heater offers sleek looks, combining stylish function with an unprecedented level of heating comfort and energy efficiency. Forming part of our high performance frameless Select XLS range, which incorporates our integrated SMART-R receiver, the Herschel Select XLS Mirror heater provides the very latest in smart heating. You choose whether to control your heating from a thermostat (sold separately), through the convenience of an App, or you can even use voice control when used with Alexa or Google Assistant.

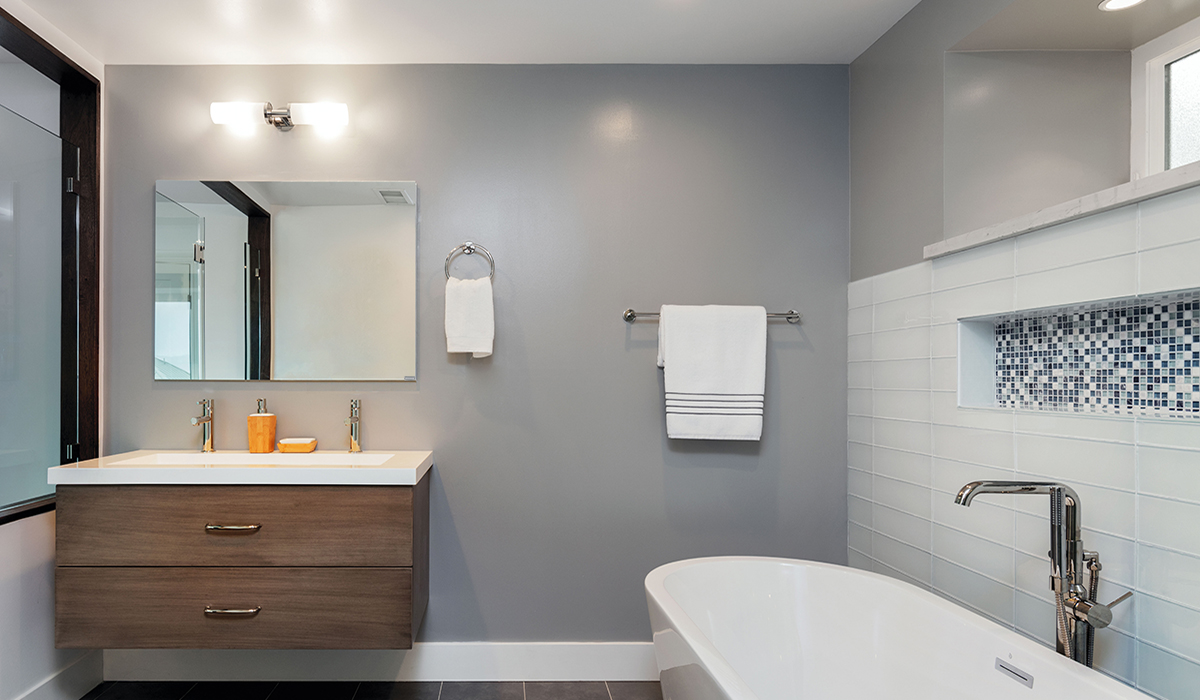

Infrared mirror heater panels can be placed in humid areas such as bathrooms without any condensation forming on the glass, whilst also chasing away the causes of moisture that convection-based heaters actually encourage (hot air moving over a cold surface).

Due to the infrared heating process, the mirrors heat up objects in the room rather than the air. This helps keep walls and fittings warm, dry and free of mould.

All units are made with Mirrored Safety Glass and incorporate Easy-Fix mounting, manufactured from the highest quality materials under strict quality control and are guaranteed for 5 years. Please note that due to the infrared technology, the Select XLS mirror has a darker tint than standard (non heater) silver mirrors.

There are two options (sold separately) for operating your XLS Mirror. Choose from a battery operated controller (T-BT) or a mains / USB powered controller (T-MT). T-MT has in built Wifi allowing APP and voice control via Alexa and Google Assistant. Select your thermostat below.

The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M. If room heights are greater or there are other building factors to consider then please Contact Herschel, or contact your dealer directly so that a more detailed assessment can be carried out.
Technical

Technical Specifications
Heater Type: Fixed electric low temperature infrared heater
Surface: ESG Safety Glass with reflective Mirror coating
Rear Case: Sheet steel, with Herschel Easy-Fix mounting system
Surface Temperature: 95 - 105°C
Cable Length: 1.8m
Plug: No Plug
Voltage: 220 - 240V 50 Hz
Protection Class: IP44
Installation: Wall-mounted only
Warm-up Time: 7 Minutes
Useful Wavelength: 5 - 12µm
Quality & Safety
TÜV GS (TÜV SÜD Product Service GmbH)
EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233
AUS/ NZ Electrical Safety: AS/NZS 60335-1; 60335-2-30
Radiant Performance: IEC60675
Electromagnetic Compatibility: EN55014-1&2; EN60001-3-2&3
Restriction of Hazardous Substances (RoHS): IEC62321
Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls
Warranty: 5 Years
Manuals and Guides

Select XLS Mirror Data Sheet Click to download!

Select XLS Installation Guide Click to download!

Select XLS Easy Fix Installation Video Click to view
Controls / Accessories
Control Options (Required)
- Herschel T-MT Mains powered Wifi thermostat
  $249.00
  BUY

  Herschel T-MT Mains powered Wifi thermostat

  Herschel T-MT is a mains or micro USB powered compact thermostat control designed to work exclusively with Herschel XLS heaters with their built-in SMART-R receiver.

  T-MT also has Wifi capability to allow you to control your heating remotely via the Smartlife App or by voice control using Alexa or Google Assistant.

  T-MT features a manual temperature mode, a 7×1 day program mode and a holiday (or Away) mode. All modes will operate your Herschel heater(s) by turning them ON if the room temperature is lower than the desired temperature and will turn them OFF once the desired temperature is reached or exceeded.

  The T-MT is designed to be easy to operate and incorporates the latest energy-saving features including Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use.

  The T-MT can be paired to more than one heater meaning multiple heaters within the room can be controlled with the same T-MT thermostat.

  Note: The T-MT will only work with Herschel XLS heaters. It is not possible to operate the T-MT with any other brand of infrared heater.

  BUY
- Herschel T-BT Battery powered wireless thermostat
  $199.00
  BUY

  Herschel T-BT Battery powered wireless thermostat

  Herschel T-BT is a compact battery-powered thermostat control designed to work exclusively with Herschel XLS heaters with their built-in SMART-R receiver.

  T-BT features a manual temperature mode, a 7×1 day program mode and a holiday (or Away) mode. All modes will operate your Herschel heater(s) by turning them ON if the room temperature is lower than the desired temperature and will turn them OFF once the desired temperature is reached or exceeded.

  The T-BT is designed to be easy to operate and incorporates the latest energy-saving features including Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use.

  The T-BT can be paired to more than one heater meaning multiple heaters within the room can be controlled with the same T-BT thermostat.

  The T-BT is not wifi enabled and will not work with the Smartlife App.

  Note: The T-BT will only work with Herschel XLS heaters. It is not possible to operate the T-BT with any other brand of infrared heater.

  BUY
Optional Accessories
- Touch Screen Control Centre
  $699.00
  BUY

  Touch Screen Control Centre

  Take full control of your heating routines with the Herschel Touch Screen Control Centre, a central hub where you can activate Smart Life Scenes to fully customise your heating to fit around your schedule. Decided to head out for the day or going on holiday for longer? Save energy by never heating an empty home through Tap-to-Run Scenes, which can override any existing Schedules to ensure you have full control over your infrared heating. The Touch Screen Control Centre can be conveniently controlled using the 4″ touch screen display; where you can quickly access two of your chosen Scenes from the home screen, or simply swipe right to find all Configured Scenes on your Smart Life app. This display also features the time, date, and weather status.

  Not home? The Touch Screen Control Centre can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

  The Touch Screen Control Centre is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Touch Screen Control Centre is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

  The unit size is 86 x 86 x 36mm.

  Note: The Touch Screen Control Centre will not work with the T-BT Battery Powered Thermostat.

  BUY
- Four Scene Control – White
  $229.00
  BUY

  Four Scene Control – White

  Easily activate 4 Tap-to-Run Scenes with the Herschel Four Scene Control to fully control your heating, your way. With unlimited potential, you can create Scenes that are perfect for your routines, and conveniently activate them with one tap of a button using this smart control. This control is designed to be used with Tap-to-Run Scenes through Smart Life, which can override any Schedules to give you more control with a tap of a button. Going on holiday? Simply tap the Holiday icon and your infrared heaters will automatically stay off until you are back, helping to save energy and reduce running costs. Feeling cold? Tap the On icon to turn your infrared heaters on to give you a boost in heating. You can assign any Scene to any button through the Smart Life App to make the control personalised to you and your heating preferences.

  There are 4 colour options available for your Four Scene Control; White, Brushed Silver, Brushed Gold and Black. Size is 86 x 86 x 33mm.

  Not home? The Four Scene Control can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

  The Four Scene Control is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Four Scene Control is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

  Note: The Four Scene Control will not work with the T-BT Battery Powered Thermostat.

  BUY
- Four Scene Control – Brushed Silver
  $229.00
  BUY

  Four Scene Control – Brushed Silver

  Easily activate 4 Tap-to-Run Scenes with the Herschel Four Scene Control to fully control your heating, your way. With unlimited potential, you can create Scenes that are perfect for your routines, and conveniently activate them with one tap of a button using this smart control. This control is designed to be used with Tap-to-Run Scenes through Smart Life, which can override any Schedules to give you more control with a tap of a button. Going on holiday? Simply tap the Holiday icon and your infrared heaters will automatically stay off until you are back, helping to save energy and reduce running costs. Feeling cold? Tap the On icon to turn your infrared heaters on to give you a boost in heating. You can assign any Scene to any button through the Smart Life App to make the control personalised to you and your heating preferences.

  There are 4 colour options available for your Four Scene Control; White, Brushed Silver, Brushed Gold and Black. Size is 86 x 86 x 33mm.

  Not home? The Four Scene Control can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

  The Four Scene Control is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Four Scene Control is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

  Note: The Four Scene Control will not work with the T-BT Battery Powered Thermostat.

  BUY
- PIR Sensor
  $119.00
  BUY

  PIR Sensor

  The PIR Sensor works with Herschel Wifi-enabled thermostats to give you extra energy savings on your heating based on room occupancy when the heating is on. (Why have the heating on full blast in a room noone is in?).

  We recommend you set up your Herschel Thermostats to run in Smart Mode as normal.

  But then with the PIR sensor you can add “Scenes” to the Smartlife App (see an example Scene here) to turn the thermostat down if you are away from the room and turn it back up when you return. Say, for example, your living room is usually set for 21°C from 18:30 until 22:30, but you go out to dinner. Rather than keep heating a room you are not in, the PIR Sensor will turn your heating down while you are out.

  As another example, you can also use it to keep the heating on if (for example) you are working late in a room that usually turns its heating down earlier in the evening.

  The PIR Sensor is a battery operated WiFi unit. You will need one sensor for each room you want to check for occupancy. The sensor will work effectively in small to medium-size houses (e.g. 2-3 bedrooms) when paired directly to the main router. For larger buildings using network extenders, the sensors should be paired with the extenders.

  The PIR sensor must be used in conjunction with a Herschel Thermostat, it will not control your heating just on its own.

  Click here to watch our video on how to use Smart Life Scenes with the Herschel PIR Sensor:

  BUY
